Container Door Seals

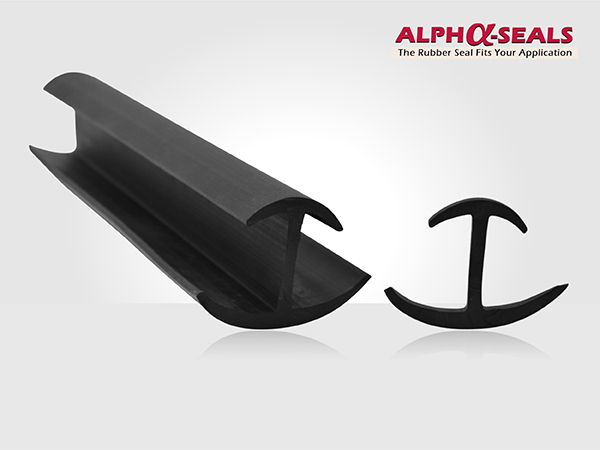

Rubber Container Door Seals

PTIG we Supply EPDM Rubber Container Door Seals ( AlphaSeals Brand) which fit in a variety of environments. we provide suitable Shapes , Sizes with Superior properties to supply a diverse range of all container types.

EPDM Rubber Container Door Seals . It can be used in a wided range of temperature -50 to +160oC and resistant to dynamic operating that needs less replacing than standard seals make the best value for money.

Easy to Install

The Contaion Door Seals is incredibly easy to insatll. you can simply slide the product over the edge of the door without using adhesive bonding

Application

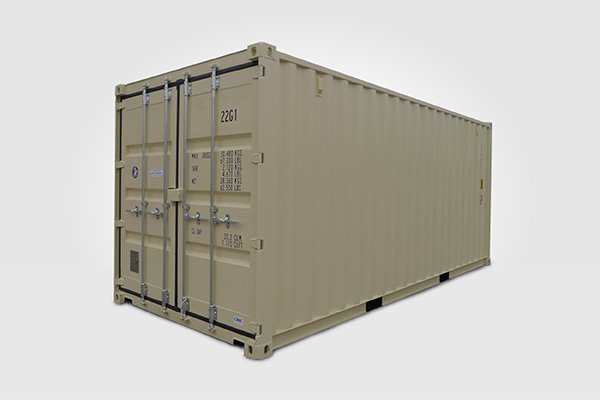

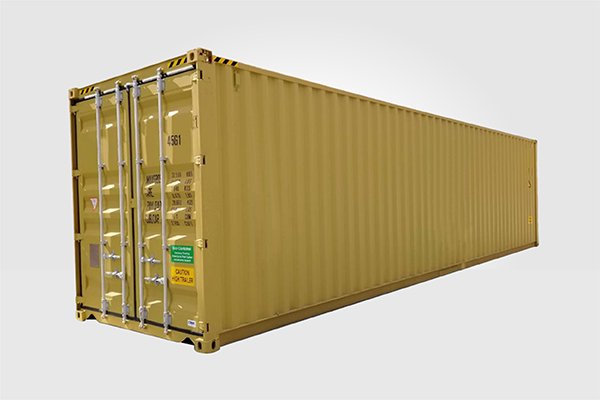

Dry Container Door Seals

10′ , 20′ , 40′ , 45′

40′ High Cube Dry Container Door Seals

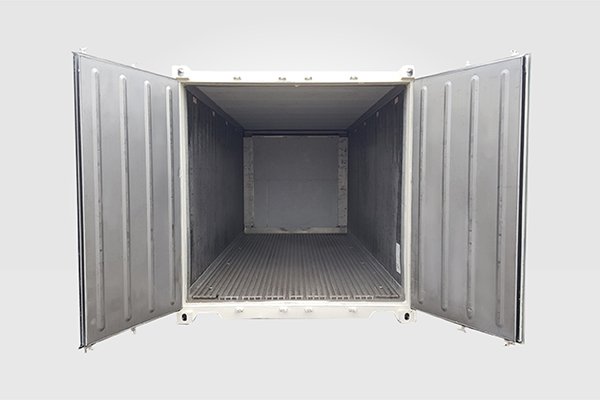

Refrigerated (Reefer) Container Door Seals

10′ , 20′ , 40′ , 45′

Specification

Properties	Spec.
Product Name	Rubber Container Door Seals
Brand	AlphaSeals
Material	EPDM
Color	Black
Hardness	70+/-5 Shore A
Working Temp.	-50 to +160°C

Standard Size

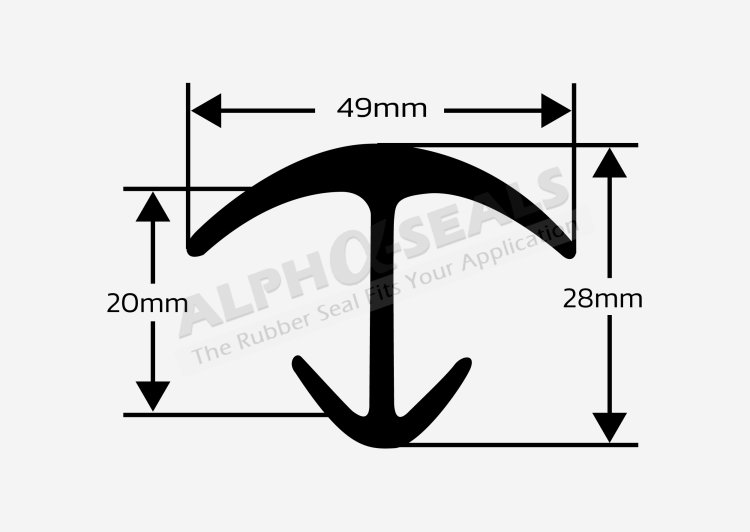

ASJEPB7049x28

Size : 49x28x20mm

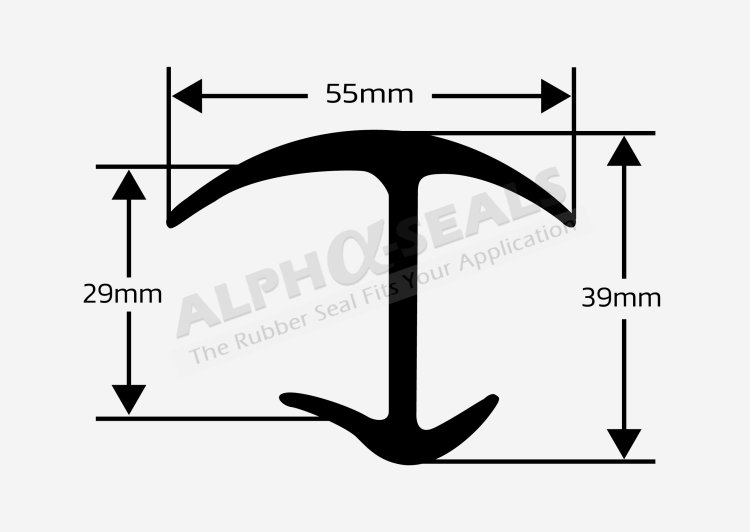

ASJEPB7055x39

Size : 55x39x29mm

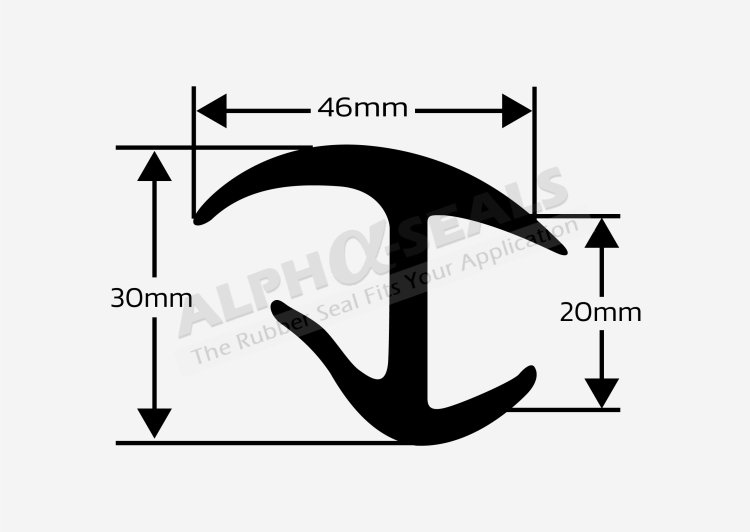

ASJEPB7046x30

Size : 46x30x20mm

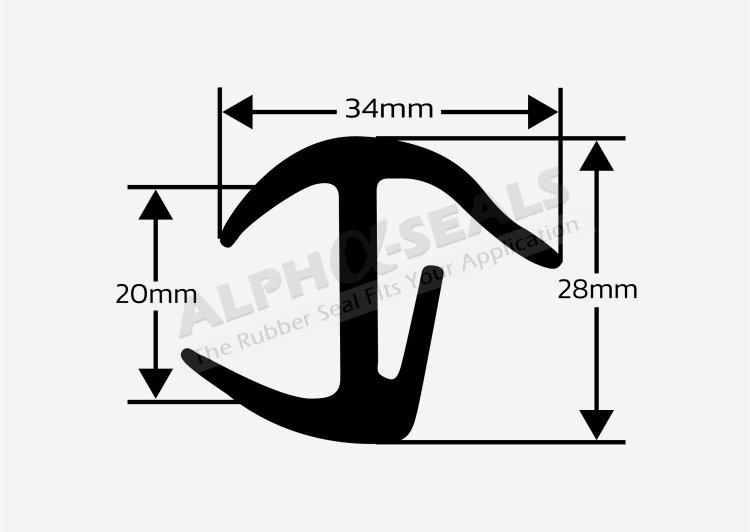

ASJEPB7034x28

Size : 34x28x20mm

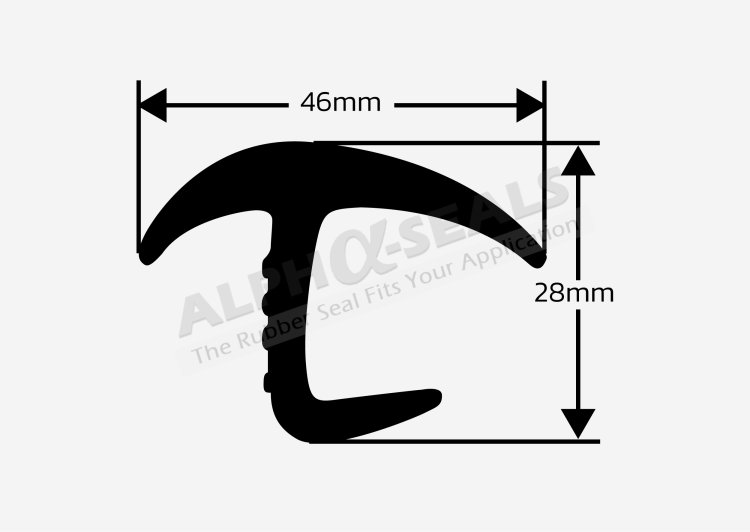

ASJEPB7046x28

Size : 46x28mm

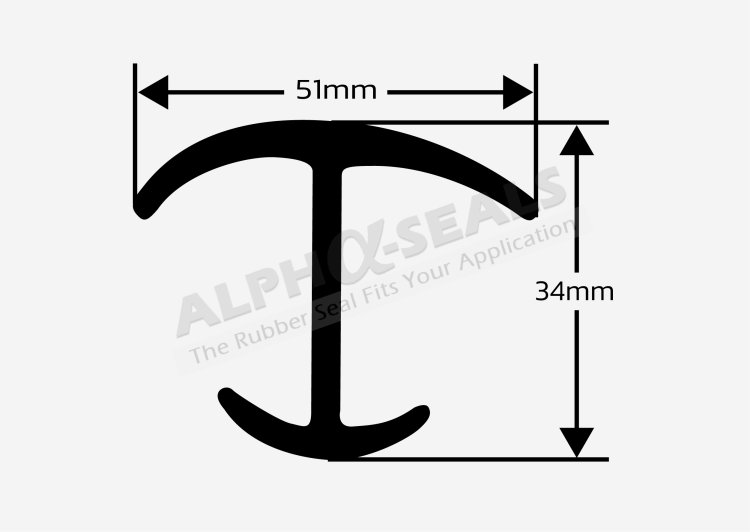

ASJEPB7051x34

Size : 51x34mm

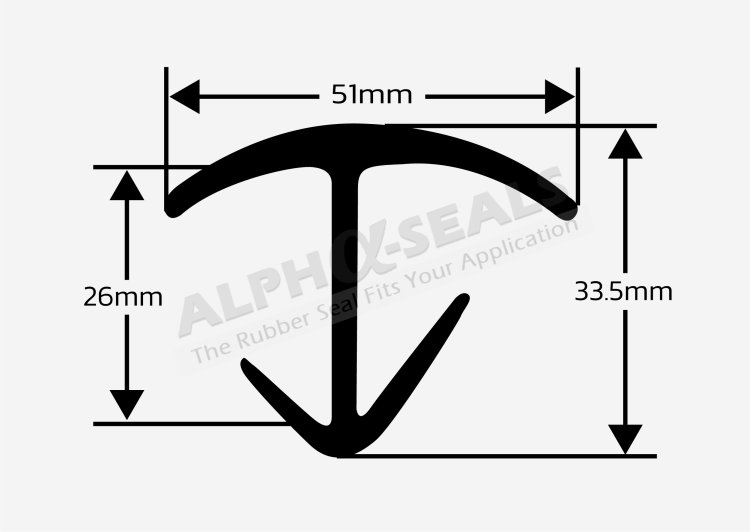

ASJEPB7051x33.5

Size : 51x33.5x26mm

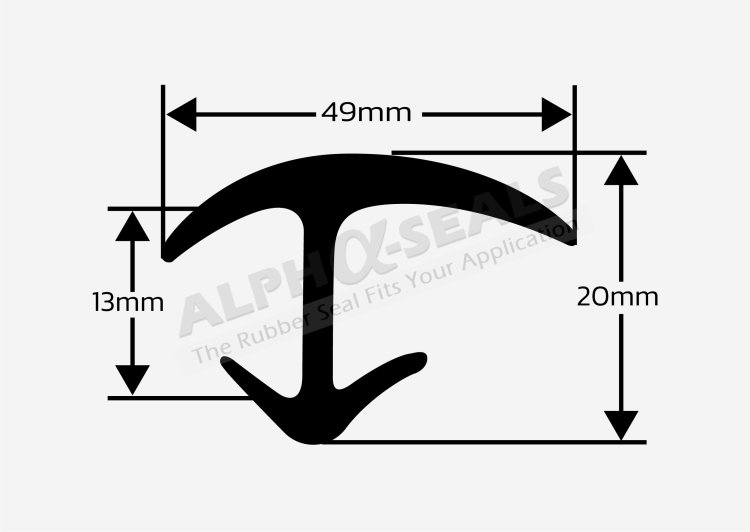

ASJEPB7049x20

Size : 49x20x13mm

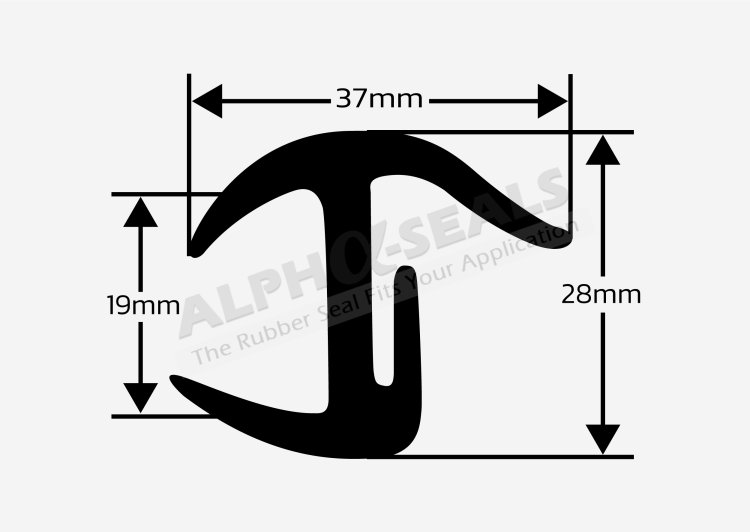

ASJEPB7037x28

Size : 37x28x19mm

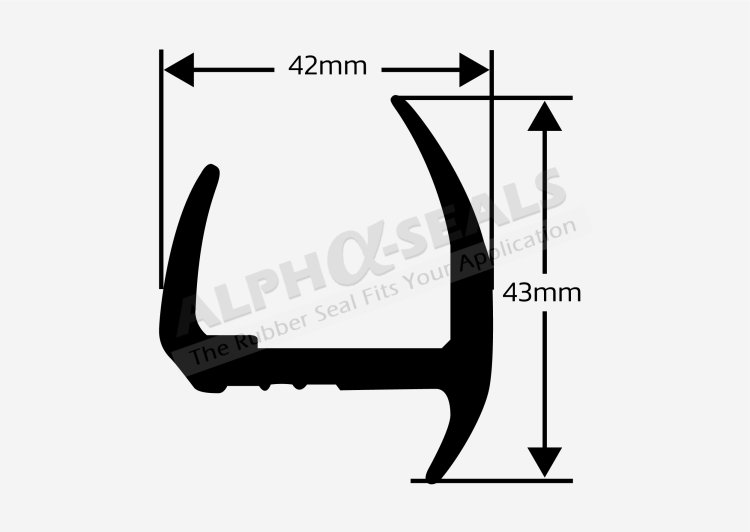

ASJEPB7042x43

Size : 42x43mm

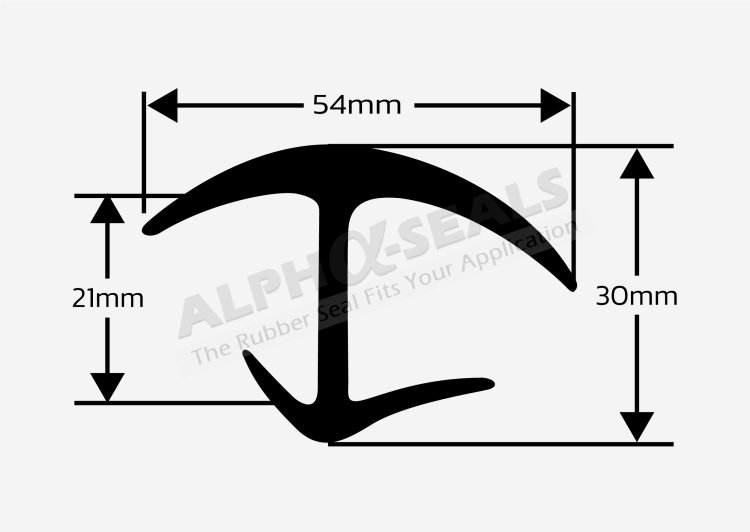

ASJEPB7054x30

Size : 54x30x21mm

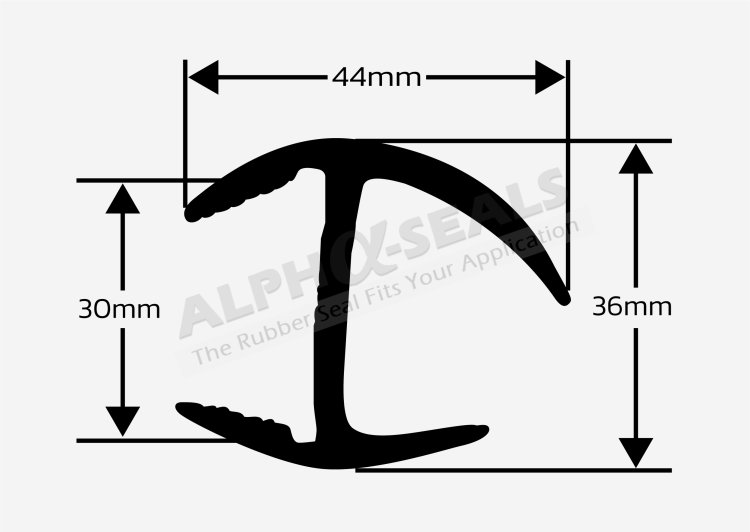

ASJEPB7044x36

Size : 44x36x30mm

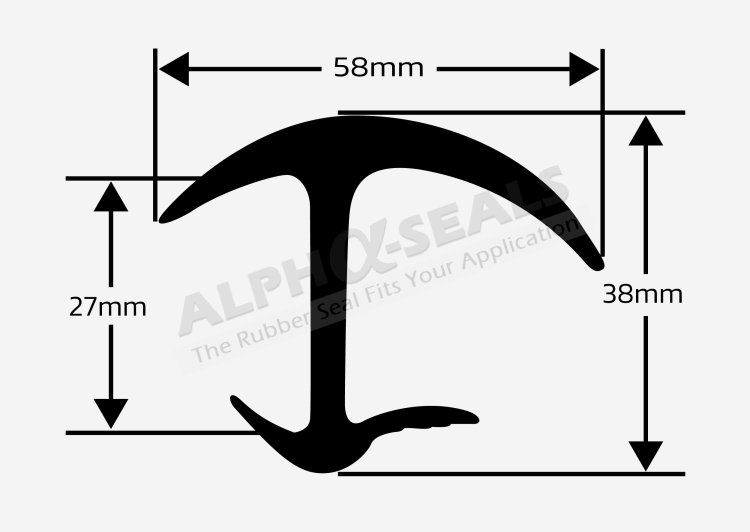

ASJEPB7058x38

Size : 58x38x27mm

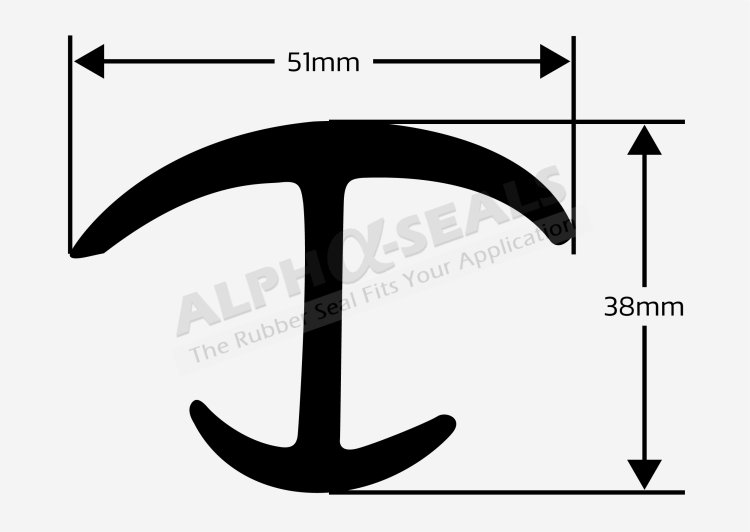

ASHPEPB6051X38

Size : 51x38mm

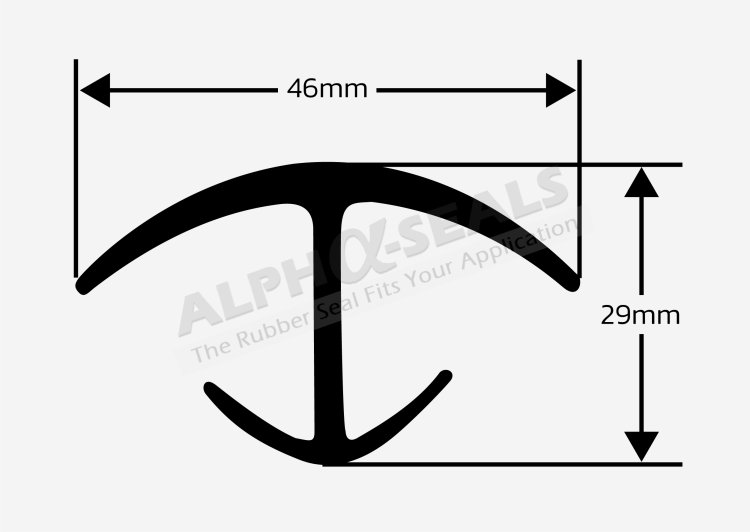

ASHPEPG6046X29

Size : 46x29mm

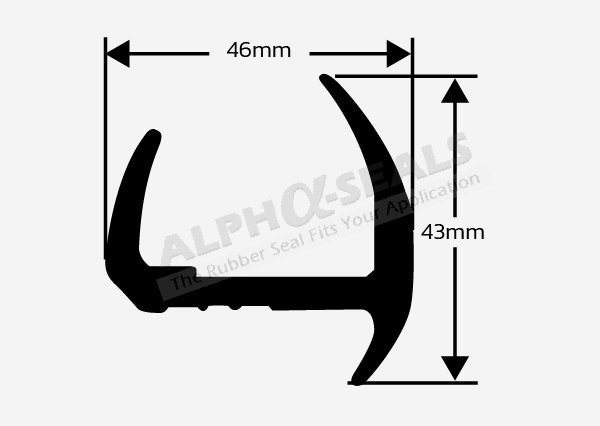

ASRSEPB7046X43

Size : 46x43mm

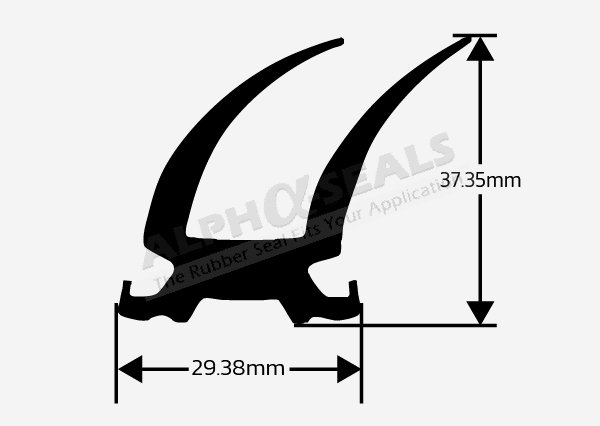

ASRSEPB6537.35X29.38

Size : 37.35x29.38mm

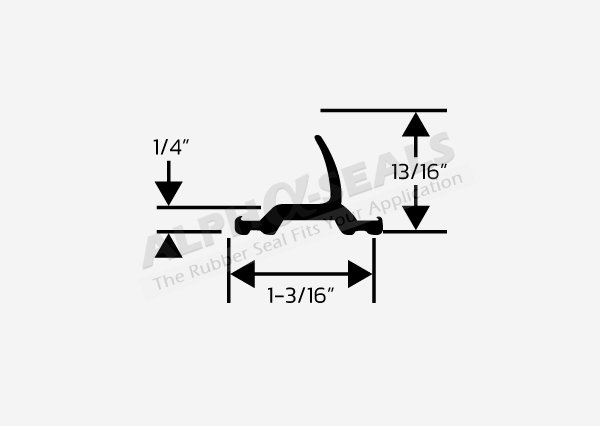

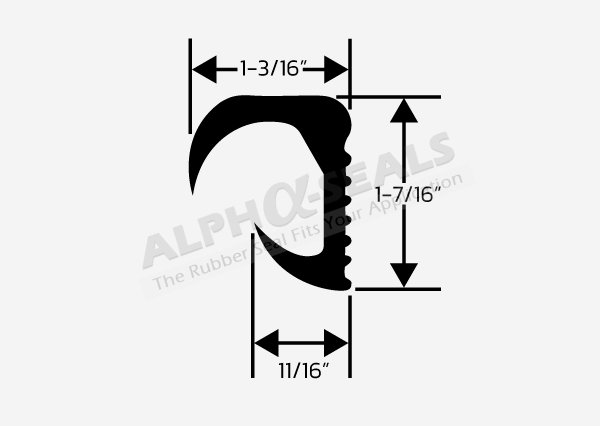

ASCEP70B1-3/16"X11/16"

FITS: 2" DOOR, BOTTOM

WEIGHT: 0.3 LBS / FT

ASJEP70B2"X7/8"

FITS: 2" DOOR, SIDES & TOP

WEIGHT: 0.45 LBS / FT

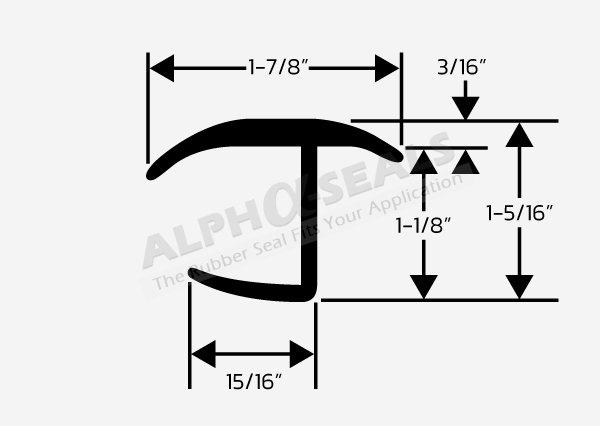

ASJEP70B1-7/8"X15/16"

FITS: 2" DOOR, SIDES & TOP

WEIGHT: 0.3 LBS / FT

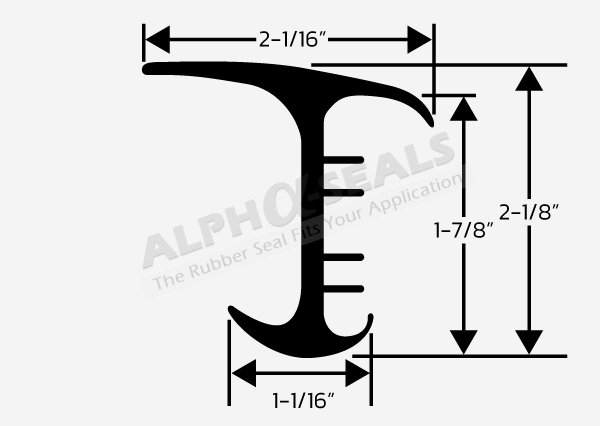

ASHEP70B2-1/16"X1-1/16"

FITS: 2" DOOR, SIDES & TOP

WEIGHT: 0.45 LBS / FT

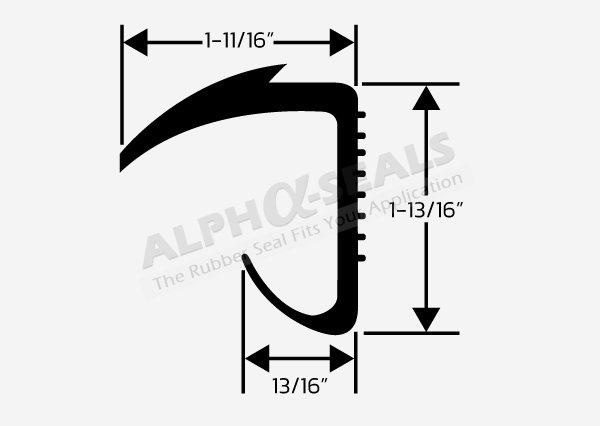

ASCEP70B1-11/16"X13/16"

FITS: 2" DOOR, BOTTOM

WEIGHT: 0.4 LBS / FT

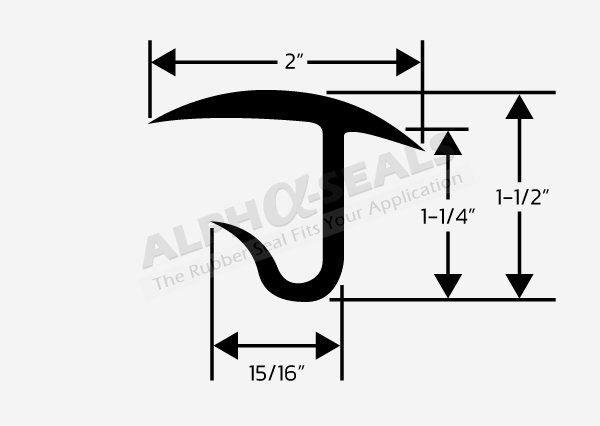

ASJEP70B2"X15/16"

FITS: 1-1/2" - 2" DOOR, SIDES & TOP

WEIGHT: 0.35 LBS / FT

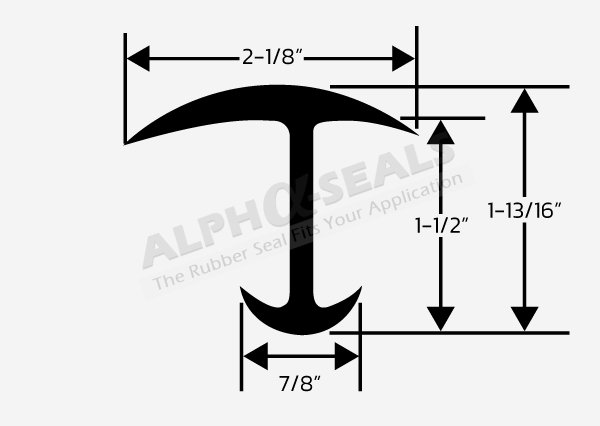

ASHEP70B2-1/8"X7/8"

FITS: 1-1/2" DOOR, SIDES & TOP

WEIGHT: 0.3 LBS / FT

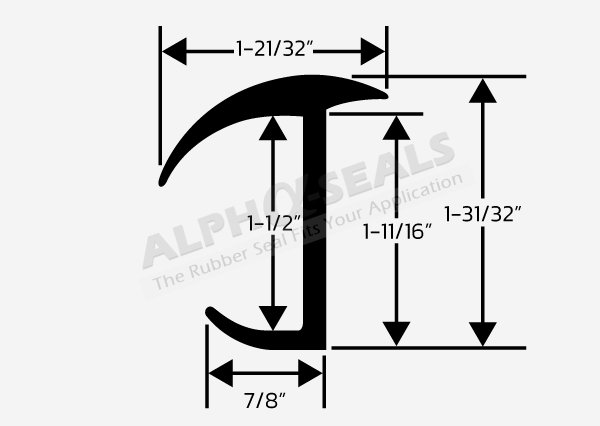

ASJEP70B1-21/32"X7/8"

FITS: 2" DOOR, SIDES & TOP

WEIGHT: 0.4 LBS / FT

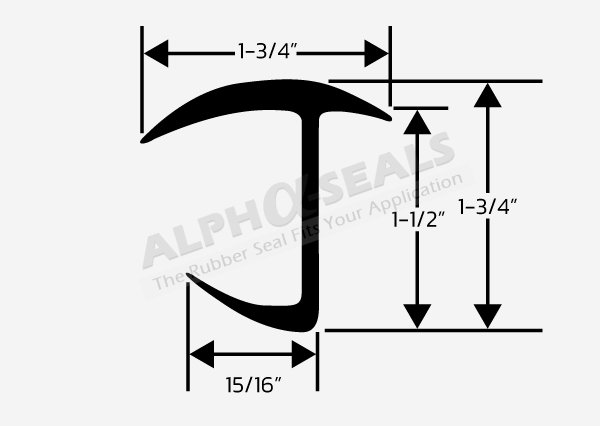

ASJEP70B1-3/4"X15/16"

FITS: 1-3/4 - 2" DOOR, SIDES & TOP

WEIGHT: 0.46 LBS / FT

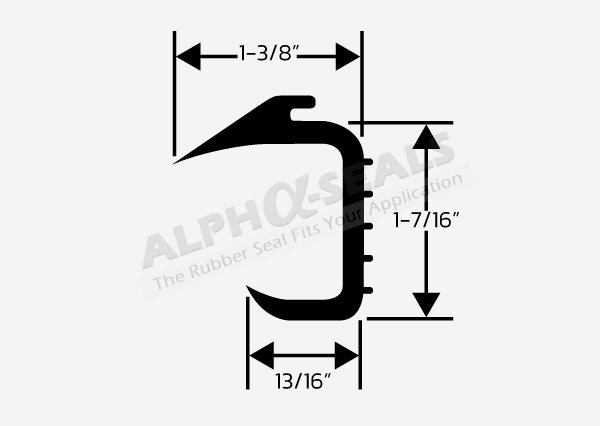

ASCEP70B1-3/8"X13/16"

FITS: 1-1/2" - 2" DOOR, BOTTOM

WEIGHT: 0.3 LBS / FT

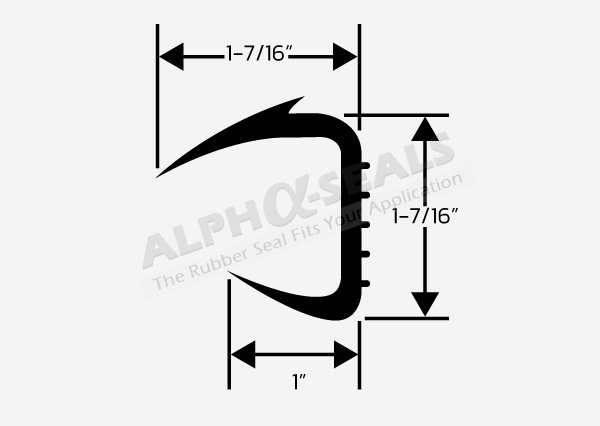

ASCEP70B1-7/16"X1"

FITS: 1-1/2" - 2" DOOR, BOTTOM

WEIGHT: 0.35 LBS / FT

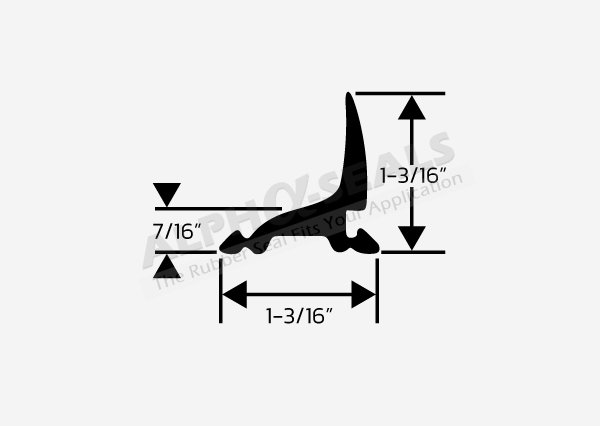

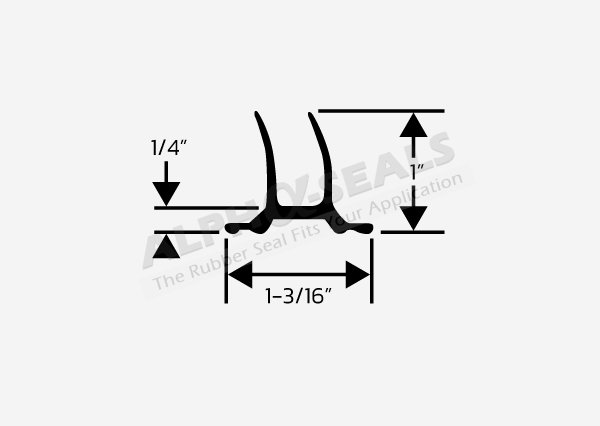

ASRSEP70B1-3/16"X1"

FITS: MCIQ REEFER & BUFFERS ASSEMBLY

WEIGHT: 0.18 LBS / FT

ASRSEP70B1-3/16"X13/16"

FITS: MCIQ REEFER & BUFFERS ASSEMBLY

WEIGHT: 0.12 LBS / FT

ASCEP70B1-3/8X15/16"

FITS: SINGAMAS 53" X 102", J.B.HUNT

WEIGHT: 0.35 LBS / FT

ASJEP70B1-13/16X1"

FITS: SINGAMAS 53" X 102", J.B.HUNT

WEIGHT: 0.43 LBS / FT

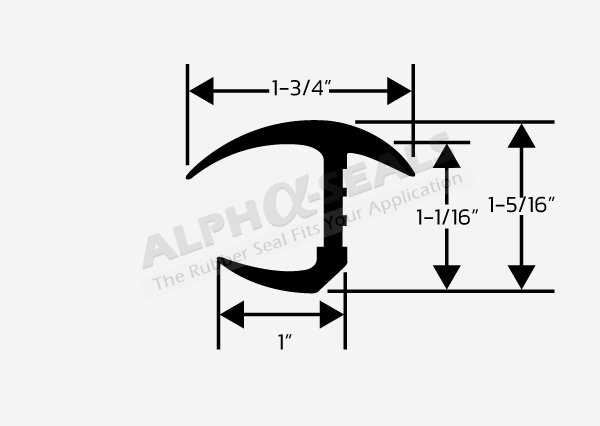

ASJEP70B1-3/4X1"

FITS: CIMC

WEIGHT: 0.33 LBS / FT

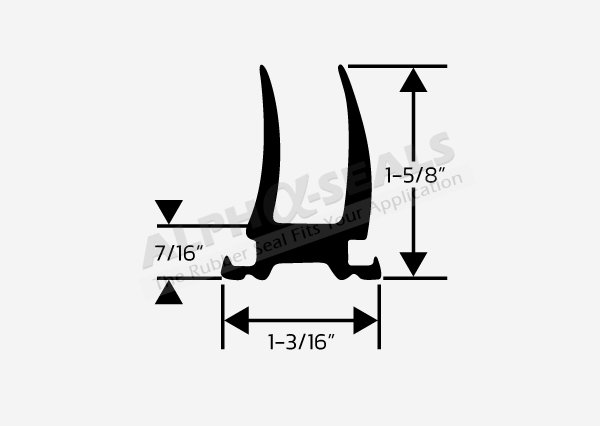

ASRSEP70B1-3/16"X1-5/8"

FITS: CIMC REEFER & BUFFERS ASSEMBLIES
LENGTH: 98-1/2" / 2.5 M

WEIGHT: 2.3 LBS / EA.

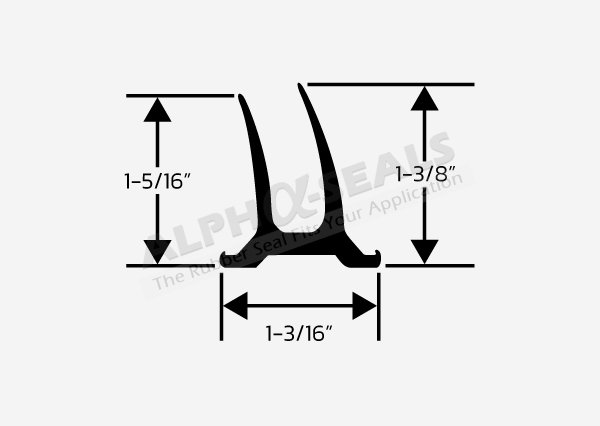

ASRSEP70B1-3/16"X1-3/16"

FITS: CIMC REEFER & BUFFERS ASSEMBLIES
LENGTH: 98-1/2" / 2.5 M

WEIGHT: 1.45 LBS / EA.

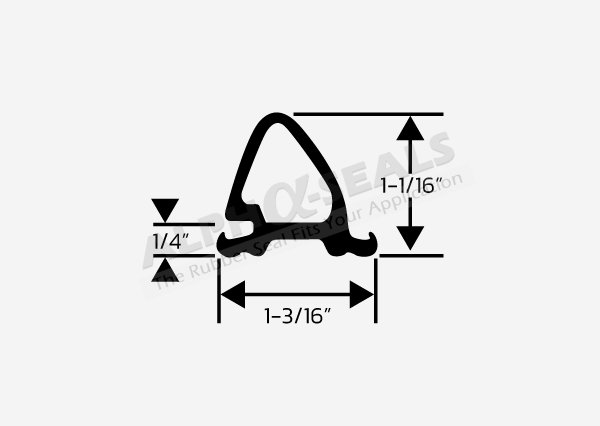

ASRSEP70B1-3/16"X1-1/16"

FITS: CIMC REEFER & BUFFERS ASSEMBLIES
LENGTH: 98-1/2" / 2.5 M

WEIGHT: 1.65 LBS / EA.

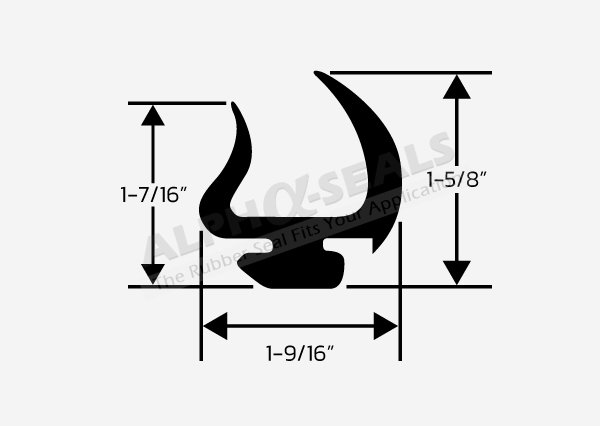

ASRSEP70B1-9/16"X1-5/8"

FITS: CIMC REEFER & BUFFERS ASSEMBLIES
LENGTH: 98-1/2" / 2.5 M

WEIGHT: 1.31 LBS / EA.

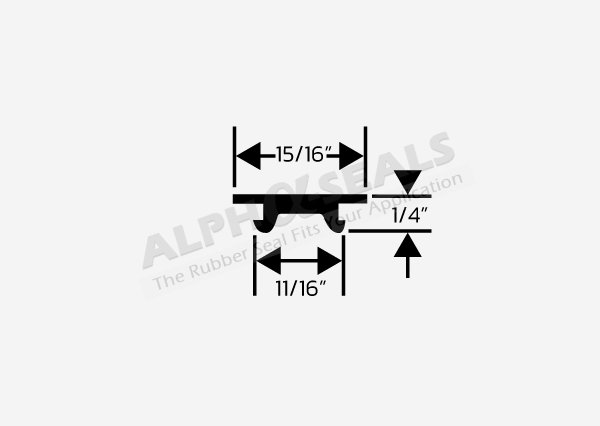

ASRSEP70B15/16"X11/16"

FITS: CIMC REEFER & BUFFERS ASSEMBLIES
LENGTH: 98-1/2" / 2.5 M

WEIGHT: 0.49 LBS / EA.

ASRSEP70B1-3/16"X1-3/8"

FITS: CIMC REEFER
LENGTH: 98-1/2" / 2.5 M

WEIGHT: 1.97 LBS / EA.

ASRSEP70B15/16"X1-3/16"

FITS: CIMC REEFER & BUFFERS ASSEMBLIES
LENGTH: 98-1/2" / 2.5 M

WEIGHT: 1.48 LBS / EA.

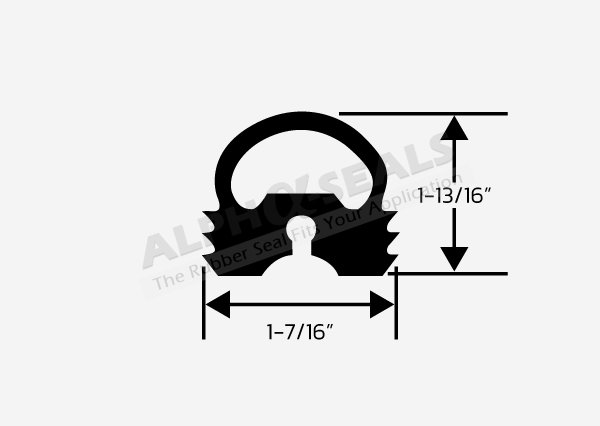

ASGKEP70B1-7/16"X1-3/16"

FITS: CIMC & HYUNDAI REEFERS
LENGTH: 98-1/2" / 2.5 M

WEIGHT: 3.92 LBS / 1.78 Kg

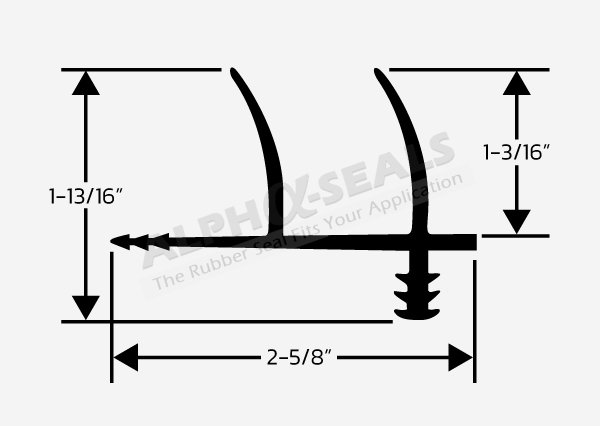

ASGKEP70B2-5/8"X1-13/16"

FITS: HYUNDAI REEFERS
LENGTH: 98-1/2" / 2.5 M

WEIGHT: 3.08 LBS / 1.4 Kg

ASHEP70B1-1/8"X1-1/2"

FITS: 1-1/4" PLYMETAL DOORS
LENGTH: 98-1/2" / 2.5 M

WEIGHT: 3.15 LBS / 1.43 Kg

ASGKEP70B1-1/16"X1-3/16"

FITS: 40' SINGAMAS REEFER
LENGTH: 90-1/4" / 2,292 M

WEIGHT: 1.54 LBS / 0.7 Kg

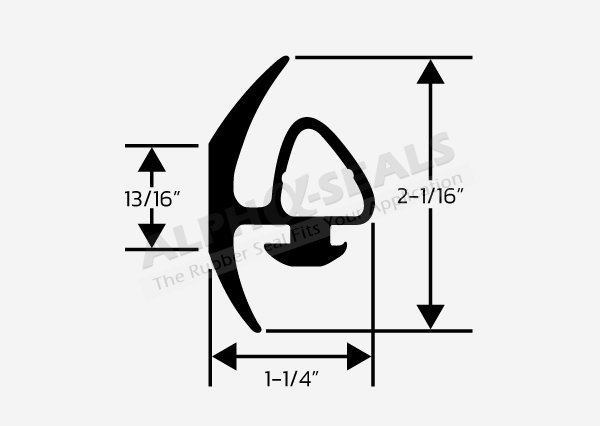

ASGKEP70B1-1/4"X2-1/16"

FITS: CIMC REEFER
LENGTH: 98-7/16" / 2.5 M

WEIGHT: 3.4 LBS / 1.5 Kg

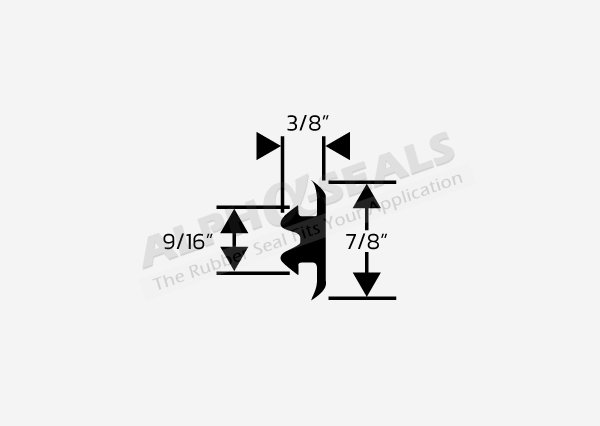

ASGKEP70B3/8"X7/8"

FITS: CIMC REEFER
LENGTH: 98-7/16" / 2.5 M

WEIGHT: 0.9 LBS / 0.4 Kg

ASGKEP70B1-5/8"X13/16"

FITS: CIMC REEFER
LENGTH: 98-1/2" / 2.5 M

WEIGHT: 5.51 LBS / 2.5 Kg

ASJEP70B1-9/16"X15/16"
Size : 39x24x42.5mm

ASJEP70B1-13/16"X15/16"
Size : 45.5x24x42.5mm

ASJEP70B1-7/8"X1-1/8"
Size : 48.5x28x42mm

ASJEP70B1-3/4"X7/8"
Size : 44x23x42mm

ASJEP70B1-11/16"X1-3/4"
Size : 43.2x45mm

ASJEP70B1-3/8"X7/8"
Size : 35.5x23x42mm

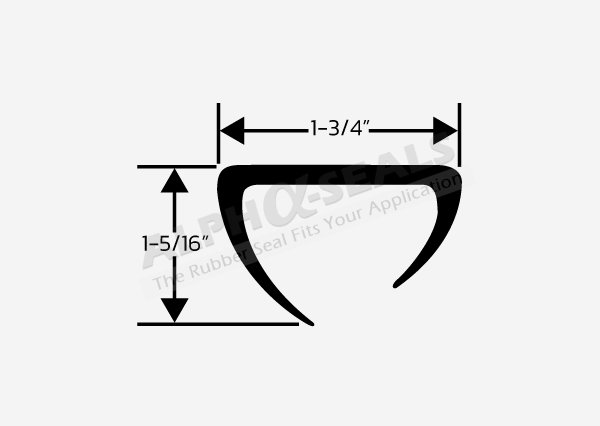

ASCEP70B1-3/4"X1-5/16"
Size : 45x30.2mm

You can ask for more information and order Container Door Seals.
