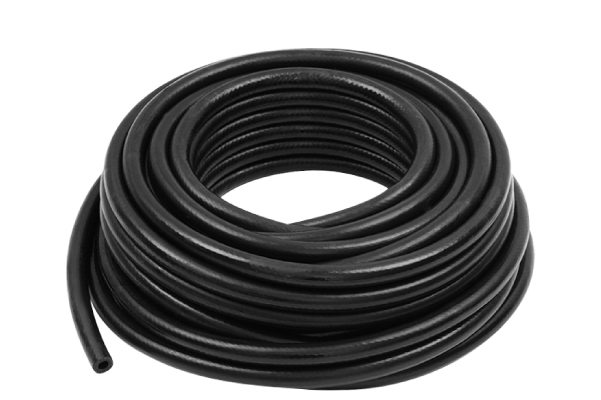

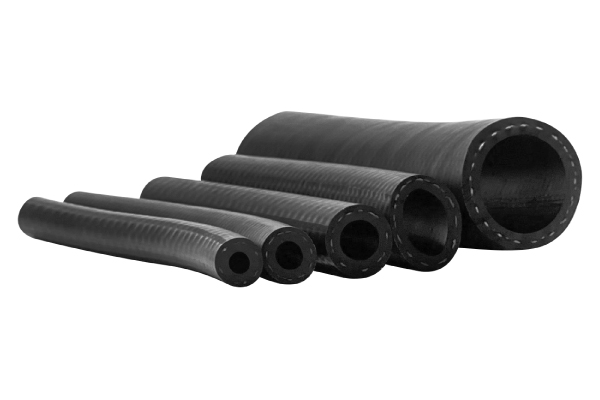

Oil Hose-15 BAR
- Reinforced with polyester
- Good abrasion , Oil , water , Air , Ozone and weather resistance
- Working Temperature : -30 to 100°C
- Max working pressure : 15 BAR
PRODUCT DESCRIPTION
The OIL HOSE-15 BAR is specifically designed for the transmission of oil, while also being suitable for use with water, air, or for various industrial purposes. This hose is manufactured from 100% NBR (Nitrile Butadiene Rubber), offering exceptional durability against petroleum oils. It is reinforced with Polyester to enhance strength and can withstand high pressure. The exterior is coated with NBR/PVC, making it abrasion-resistant, ozone-resistant, and able to withstand challenging environmental conditions. This makes it highly suitable for oil transmission or for industrial applications.
Installation : Using hose clamps or screw coupling
TECHNICAL DATA
| Property | Value |
| Product Name | Oil Hose-15 BAR |
| Brand | TechHose |
| Length/Roll | 50 Meters. |
| Inside | Black Smooth NBR |
| Outside | Black Smooth NBR/PVC |
| Color | Black |
| Reinforcement | Polyester |
| Working Temperature | -30 to +100°C |
| Max Working pressure | 15 BAR |
| Safety Factor | 3:1 |
STANDARD SIZE
I.D ( Inside Dia.) (mm) | O.D (Outside Dia.) (mm) | Working Pressure BAR | Burst Pressure BAR | Bend Radius (mm) | Weight (g/m) | Length/Roll (Meter) |
| 6.3 | 12.7 | 15 | 45 | 40 | 143 | 50 |
| 8.0 | 14.4 | 15 | 45 | 40 | 169 | 50 |
| 10.0 | 16.4 | 15 | 45 | 50 | 199 | 50 |
| 13.0 | 19.6 | 15 | 45 | 65 | 254 | 50 |
| 15.9 | 22.9 | 15 | 45 | 80 | 323 | 50 |
| 19.1 | 27.0 | 15 | 45 | 95 | 433 | 50 |
| 25.4 | 34.4 | 15 | 45 | 125 | 561 | 50 |
| 38.0 | 49.0 | 10 | 30 | 190 | 841 | 50 |
Note : Sales start at 1 roll (50 meters) + free shipping within the country.
