Rubber Extrusion Round Cord
Rubber Round Cord . Produced through the extrusion process. Comes with rubber materials available for you to choose from, Silicone, EPDM, NBR CR, NR and VITON. Cross section size (DIA.) 2-60 mm. Round solid rubber seals, good flexibility, good compression set, suitable for For use in seals, gaskets or O-rings and corner sizes. PTIG we manufacture solid rubber seals for various industrial applications such as Food & Beverage Industry, Chemical, Automotive, Pharmaceutical, Building. & Construction etc.
RUBBER EXTRUSION ROUND CORD
Custom Rubber Rubber Round Cord
  Cross Section : Round Cord
  DIA.  : 2-60 mm
  Hardness : 40-80 Shore A
  Material Served : Silicone , EPDM , CR (Neoprene) , NBR , NR , FKM
  Material Cer  : FDA , REACH , RoHS/RoHS2 , UL
CAPABILITY
  Made to Order as per Spec.
  Cut-To-Length
  Jointing / Splicing
Rubber Round Cord ( O-Ring Cord)

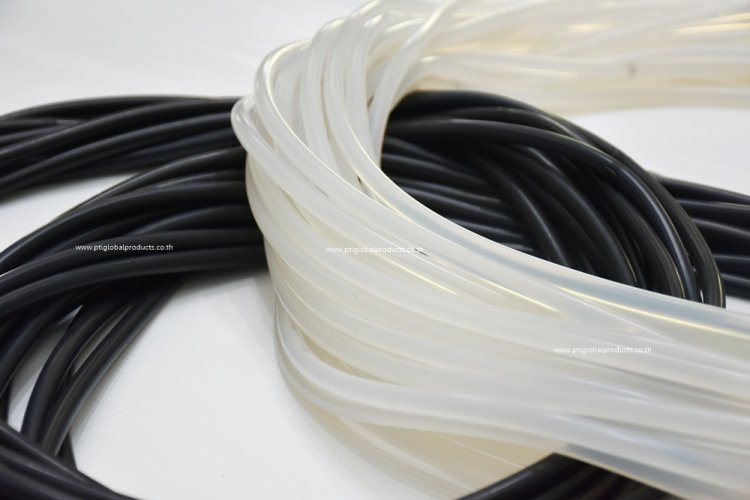

Silicone Cord
Made from silicone rubber raw material Available in both solid white silicone round and solid white silicone rubber. Food grade (FDA) wide operating temperature range. Resistant to high temperatures Endure low temperature operation (Working Temp. Range -70 to +220 C)

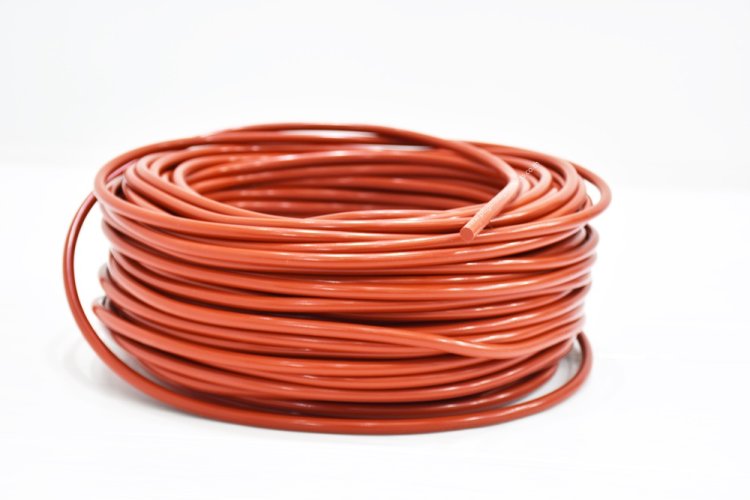

Firebrick Silicone Cord
Firebrick solid silicone round rubber seal Manufactured from food grade silicone rubber Heat resistance up to +270 C (-70 to +270 C). High heat resistance. Resistant to UV Ozone, sunlight and deterioration. Suitable for sealing gaskets, O-rings Cord.

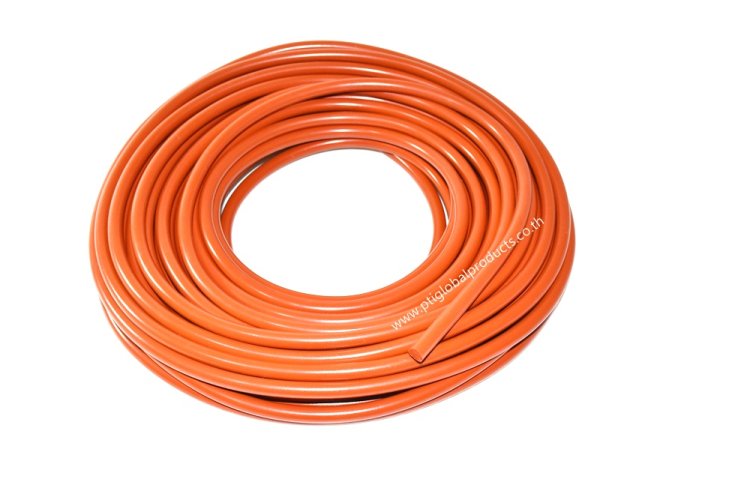

Firebrick Silicone Cord
Firebrick solid silicone round rubber seal Manufactured from food grade silicone rubber Heat resistance up to +315 C (-70 to +315 C). High heat resistance. Resistant to UV Ozone, sunlight and deterioration. Suitable for sealing gaskets, O-rings Cord.

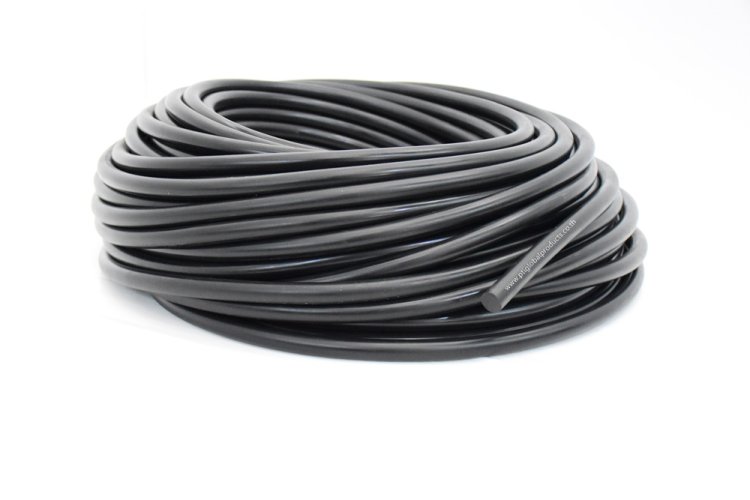

EPDM Rubber Cord
Manufactured from EPDM (Ethylene-propylene-diene-monomer) rubber raw material, resistant to chemicals, acid-alkali, resistant to UV Ozone, sunlight, steam, water, sea water and the environment. Operating temperature -50 to +160 C
CR (Neoprene) Round Cord
Round solid rubber seal that provides excellent mechanical properties, wear resistance, strength, as well as resistance to chemicals, oil, ozone and excellent resistance to deterioration. And has fireproof grade Operating temperature -40 to +140 C

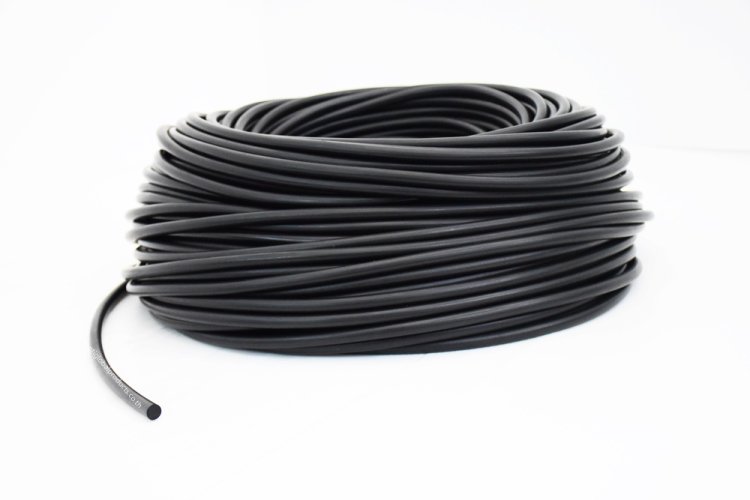

NBR Rubber Cord
Round solid rubber seal with outstanding oil resistance properties Whether it is petrolium oil Fuel Excellent resistance to abrasion Suitable for use in the automotive, petroleum, gas industry. Operating temperature -35 to +120 C

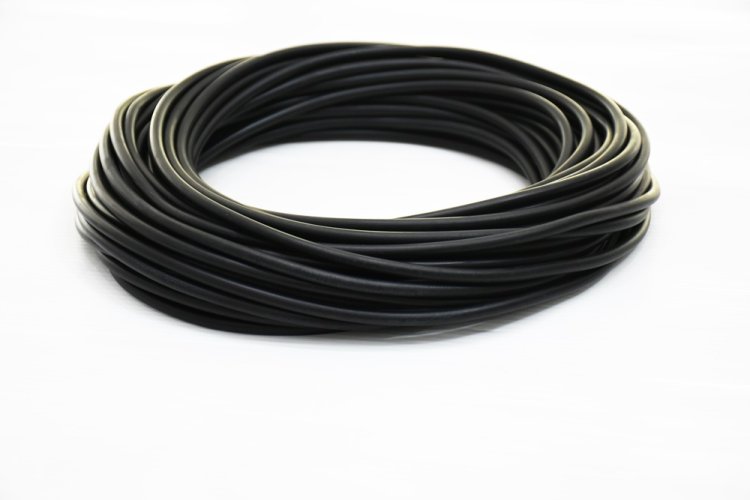

NR Rubber Cord
Manufactured  from natural rubber Providing flexibility, providing good compression set, tensile strength, and abrasion resistance Wear resistant Excellent Resistant to water and steam Operating temperature -50 to +100 C

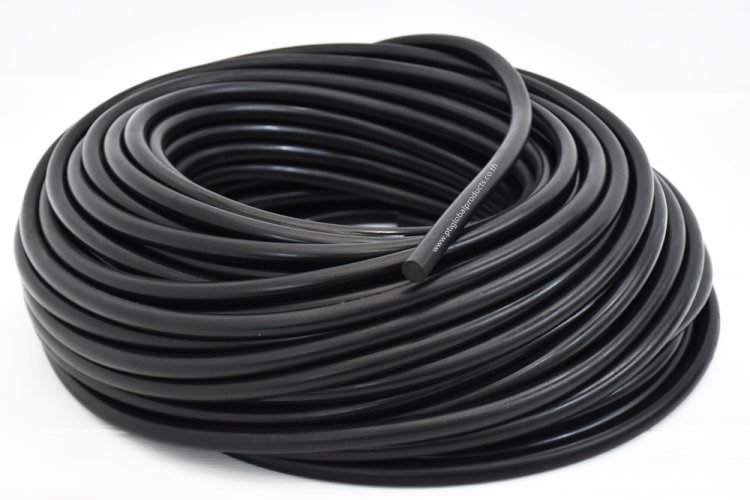

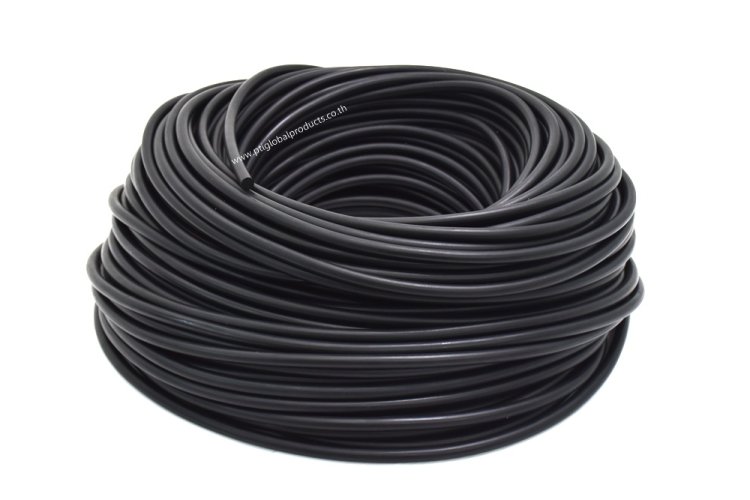

VITON Round Cord
Viton Round Cord  Outstanding properties, resistant to strong chemicals High heat resistance, flammability. Suitable for use in the automotive, petroleum, gas industry. Operating temperature -30 to +260 C
Rubber Round Cord - Standard Size
NO.DIA (mm)Hardness (Shore A)Length / Roll (Meter)
127020-100
237020-100
347020-100
457020-100
567020-100
677020-100
787020-100
896010-50
9106010-50
10 12 6010-50
11 15 6010-50
12 20 6010-25
13 25 6010-25
14 30 6010-20
15 40 6010
16 45 6010
17 50 6010
18 60 6010
 PTIG
We provide production services according to your Spec.
Use. Minimum order quantity is 100 meters or as per agreement.
Free!! Tooling Service. Sample approved.

You can ask for more information or order products at
  Tel: 022577145 / 0926568846 / 0982539956
  LINE ID: @ptiglobal
  Email: info@ptigroups.com
