SKU : ASRSEPG8011.5X5.8
AlphaSeals® grey EPDM U-channel seal, 11.5x5.8 mm, 80±5 Shore A, for edge trimming and industrial assembly. Supplied in rolls. Custom production to drawing available. Request a quote.
Brand : AlphaSeals
Share

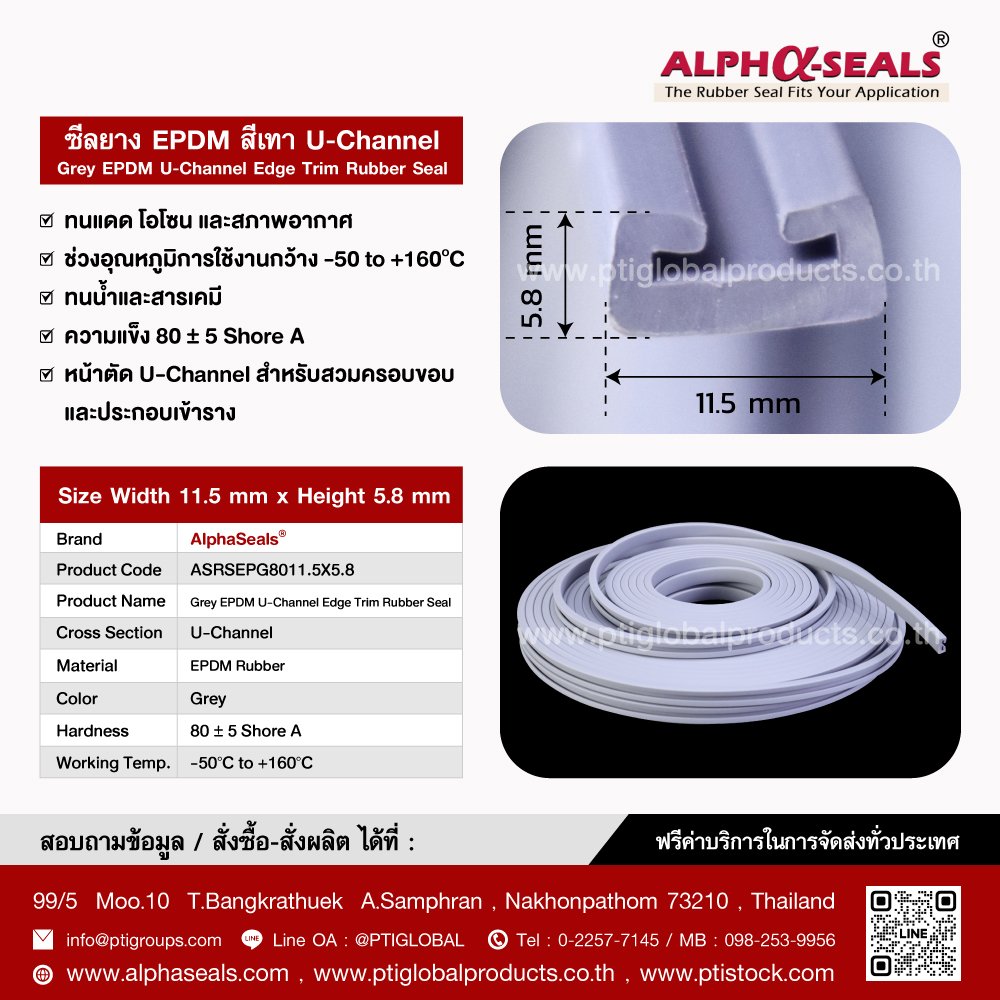

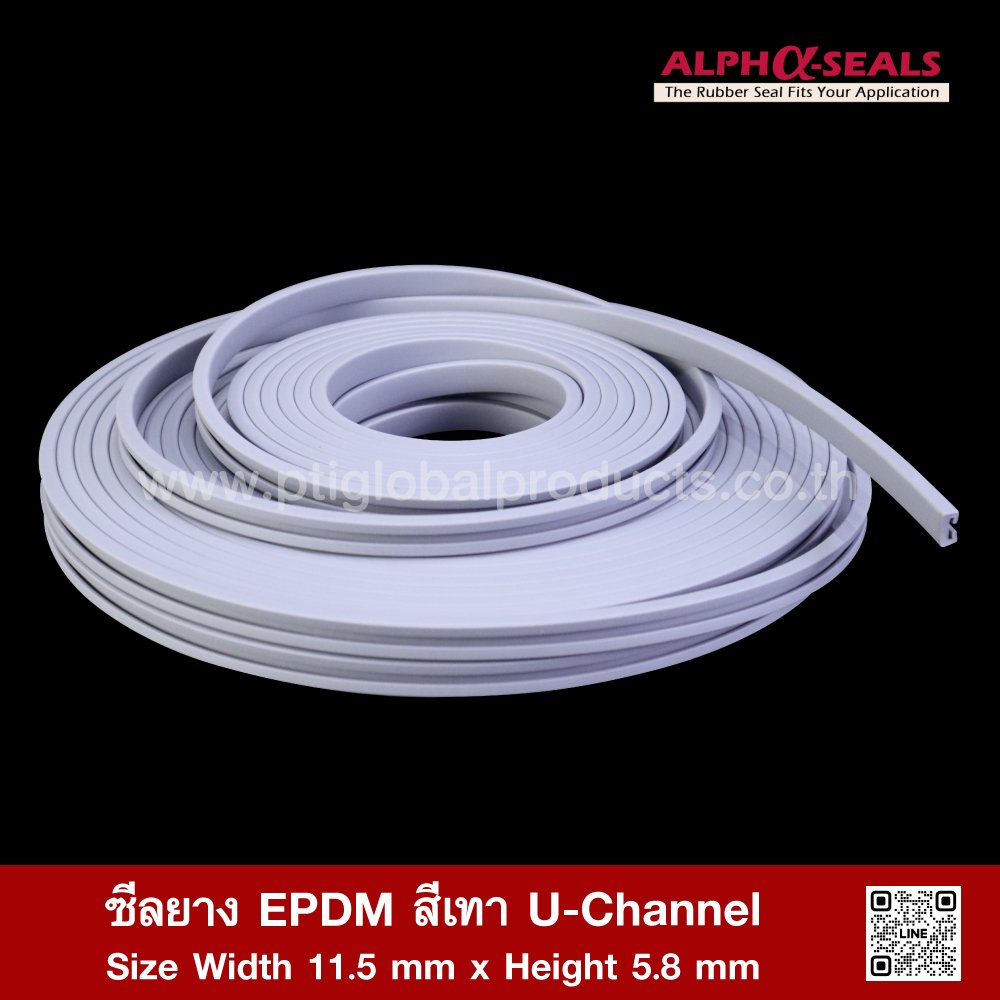

AlphaSeals® Grey EPDM U-Channel Edge Trim Rubber Seal 11.5 × 5.8 mm
Product Code: ASRSEPG8011.5X5.8
AlphaSeals® by PTI Global Products Company Limited
U-Channel Rubber Profile for Edge Trimming and Industrial Assembly

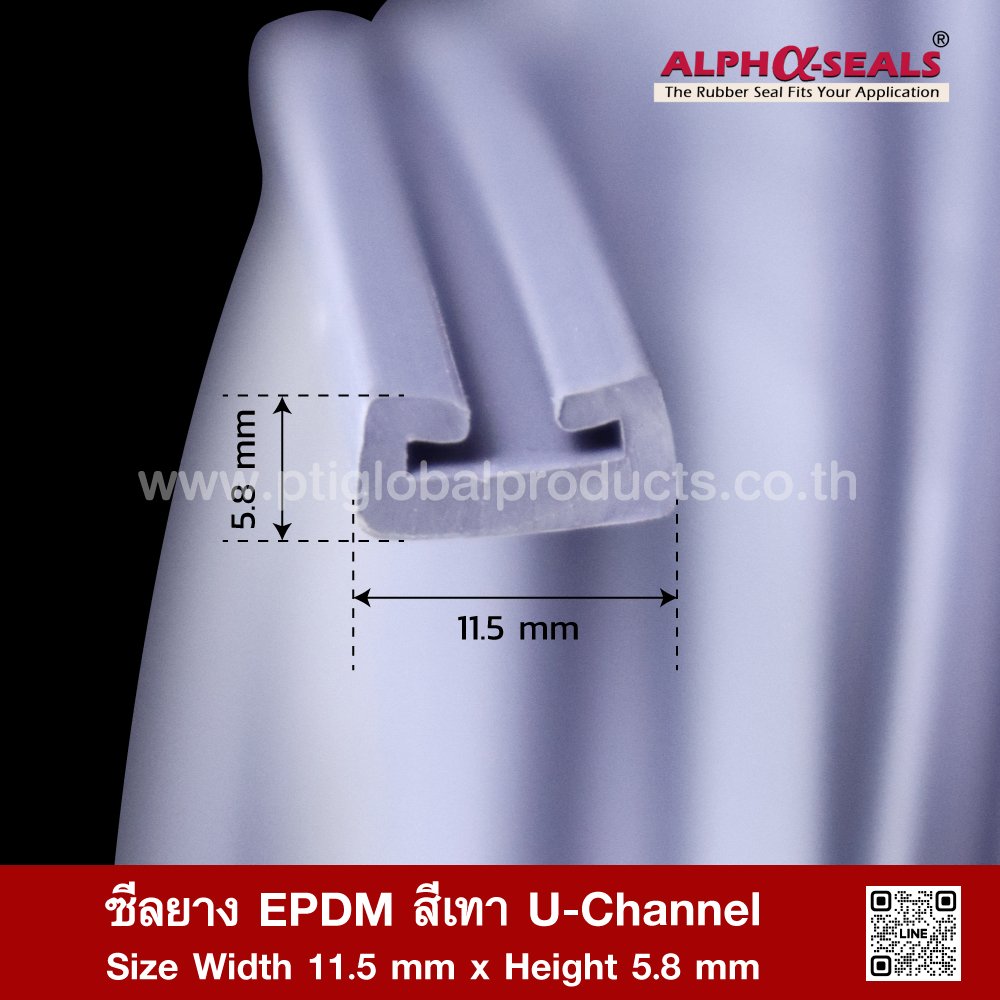

The AlphaSeals® Grey EPDM U-Channel Edge Trim Rubber Seal is an extruded rubber profile with external dimensions of 11.5 mm wide × 5.8 mm high and a groove width of 8.1 mm. Its U-shaped cross-section fits over compatible panel edges or into matching channels for edge finishing, separation between components, and sealing applications based on the equipment design.

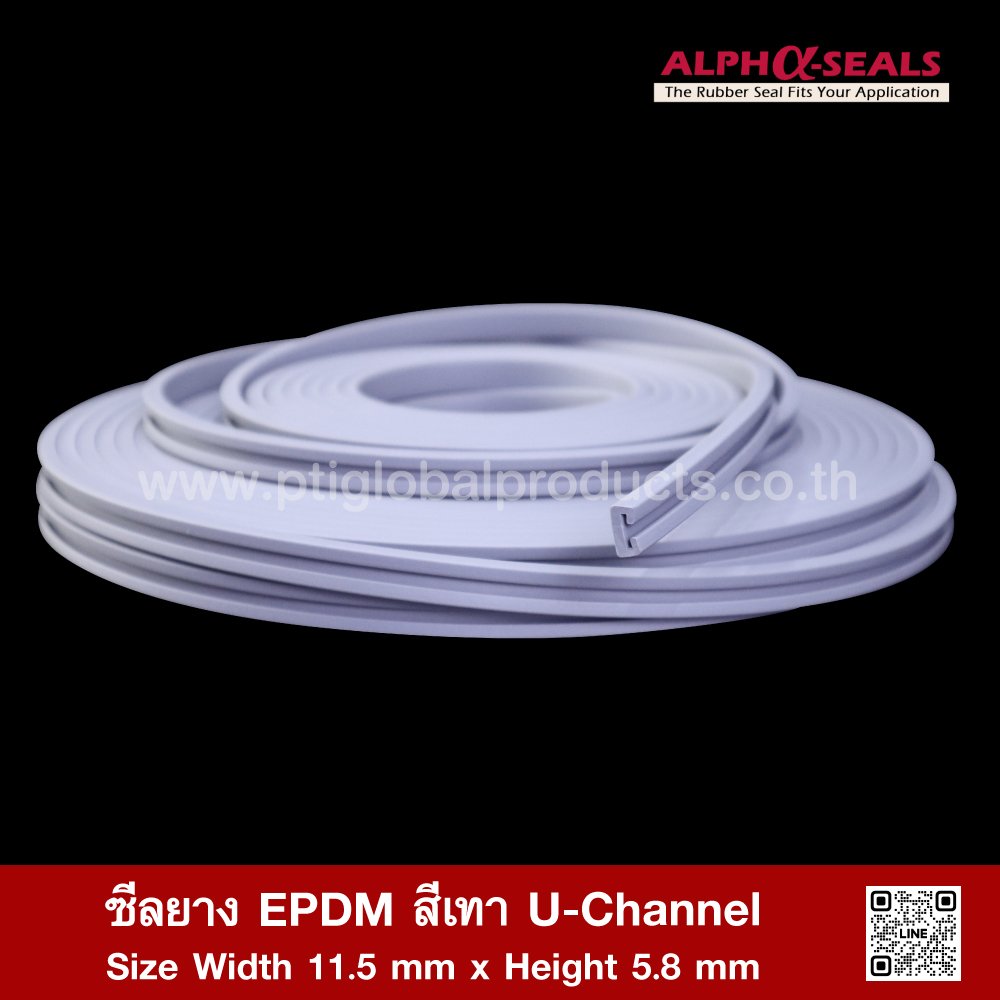

Manufactured from grey EPDM rubber with a hardness of 80 ± 5 Shore A, this profile is suitable for assemblies requiring a relatively firm rubber material. It is supplied in rolls and can be cut to the required installation length. Custom production is available based on customer specifications or drawings.
Key Features
UV, Ozone and Weather Resistance
EPDM offers resistance to UV exposure, ozone and weathering, making it suitable for indoor and outdoor edge-trim and sealing applications.
Operating Temperature Range: −50°C to +160°C
The specified operating temperature range is −50°C to +160°C, supporting applications exposed to low and elevated temperatures. Suitability should be confirmed against the actual operating conditions.
Water and Chemical Resistance
EPDM provides excellent water resistance and good resistance to selected acids and alkalis at low to moderate concentrations. For chemical-contact applications, please provide the chemical type, concentration and operating temperature for a suitability assessment.

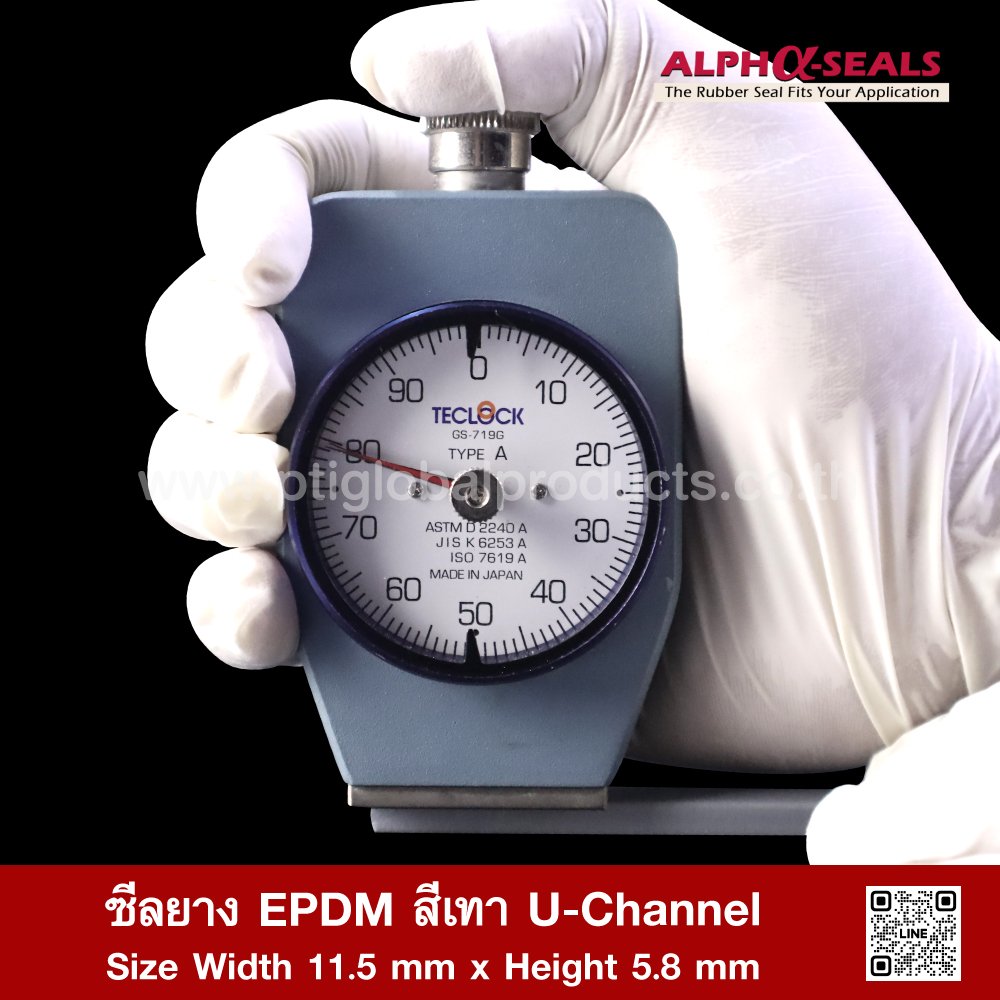

Firm Rubber Profile — 80 ± 5 Shore A
The 80 ± 5 Shore A hardness provides a relatively firm rubber profile for industrial assemblies that specify a harder rubber material. Profile dimensions, groove fit and installation conditions should be considered alongside hardness when selecting the seal.
U-Channel Design for Panel Edges and Matching Channels
The U-shaped profile fits over compatible panel edges or into matching channels, helping position the profile and separate contact surfaces between components. The groove size should be selected to suit the panel thickness and assembly design.
Product Specification
| Brand Name | AlphaSeals® |
| Product Code | ASRSEPG8011.5X5.8 |
| Product Name | Grey EPDM U-Channel Edge Trim Rubber Seal |
| Material | EPDM Rubber |
| Color | Grey |
| Manufacturing Process | Extrusion |
| Cross-Section | U-Channel |
| Hardness | 80 ± 5 Shore A |
| Operating Temperature Range | -50°C to +160°C |

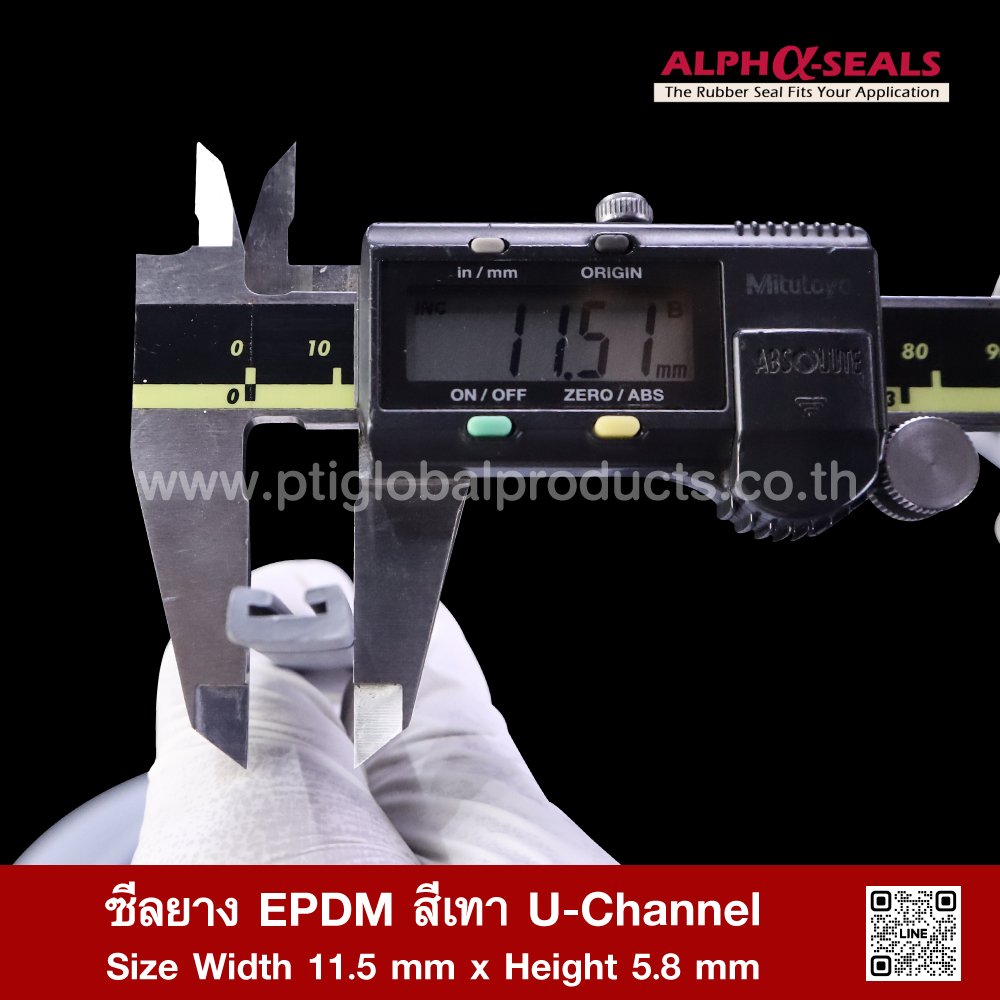

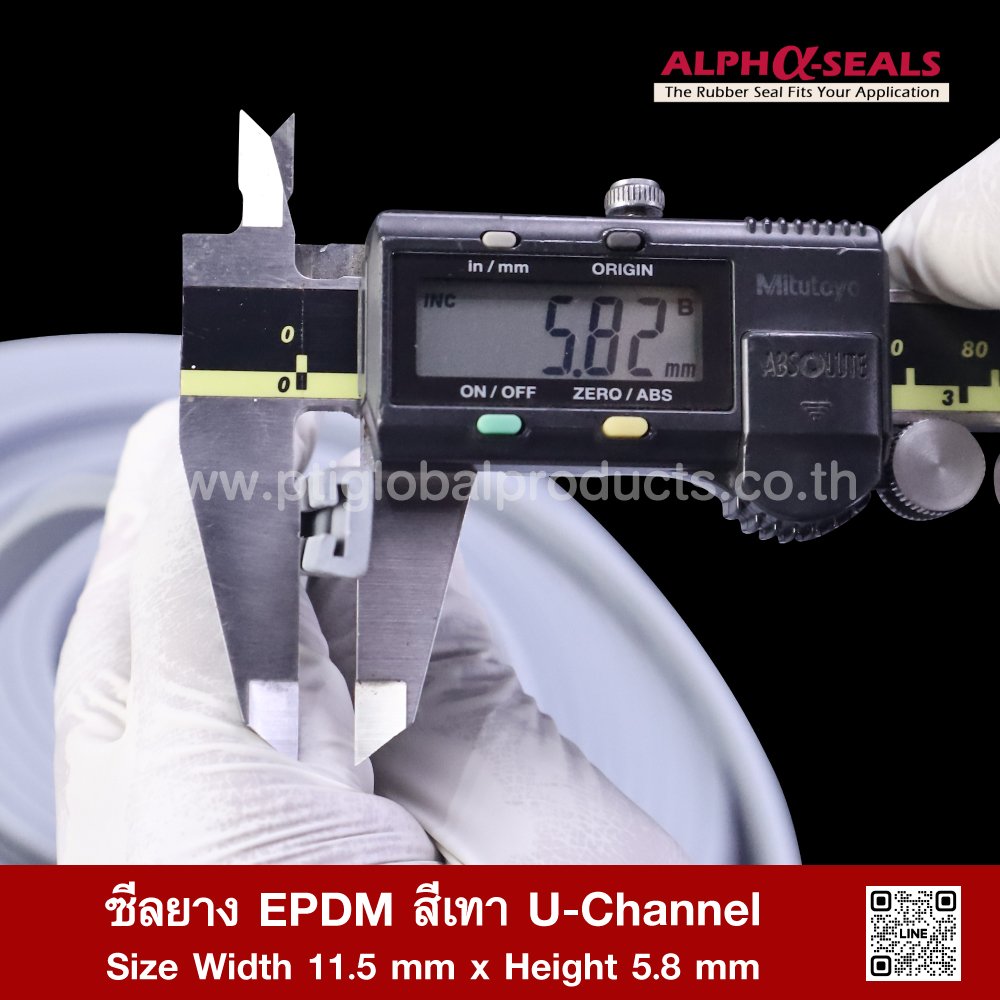

| Dimensions (W × H × G) | 11.5 × 5.8 × 8.10 mm |
| Roll Length | 25–50 m per roll |
| Country of Origin | Thailand |
| Custom Production | Available based on customer specifications or drawings, subject to technical review |
W = external width; H = external height; G = groove width. Please confirm profile fit against your panel thickness and assembly drawing before ordering.
Typical Applications
This EPDM U-channel profile can be considered for the following applications when the groove dimensions and installation method are compatible with the component.
Panel Edge Trimming
For fitting over metal sheets, acrylic panels and other compatible panel materials. Suitable for edge finishing and separating contact surfaces between components.
Cabinets, Enclosures and Equipment Covers
For installation around panel edges, equipment covers and enclosure frames, according to the specified dimensions and assembly design.
Aluminum Profiles and Structural Assemblies
For use with compatible aluminum profiles or receiving channels. Assembly clearances and fit should be checked before installation.
Doors, Windows and Machinery Components
For use as a sealing or separating component in compatible assemblies. Actual sealing performance depends on the joint design and installation conditions.
Custom U-Channel Rubber Extrusion to Your Specifications
AlphaSeals® by PTI Global Products Company Limited offers custom rubber profile production using the extrusion process for industrial applications.
Custom dimensions, colors and hardness can be evaluated against your component requirements. Send your cross-sectional drawing, component photos or seal sample, together with the intended application and required quantity, for review by our Sales Engineer team.
Minimum order quantity and production lead time for custom profiles will be determined according to the design and specifications of each project.
Request Specifications or a Quotation
Looking for an EPDM U-channel rubber seal for your assembly?
Send us your drawing or component photos, panel thickness, operating conditions and required quantity. Our Sales Engineer team will review your specifications and prepare a quotation.
Please reference Product Code: ASRSEPG8011.5X5.8 in your inquiry.
Tel: +66 2 257 7145 | Mobile / WhatsApp: +66 92 656 8846
Line: @ptiglobal | Email: info@ptigroups.com
AlphaSeals® by PTI Global Products Co., Ltd.
