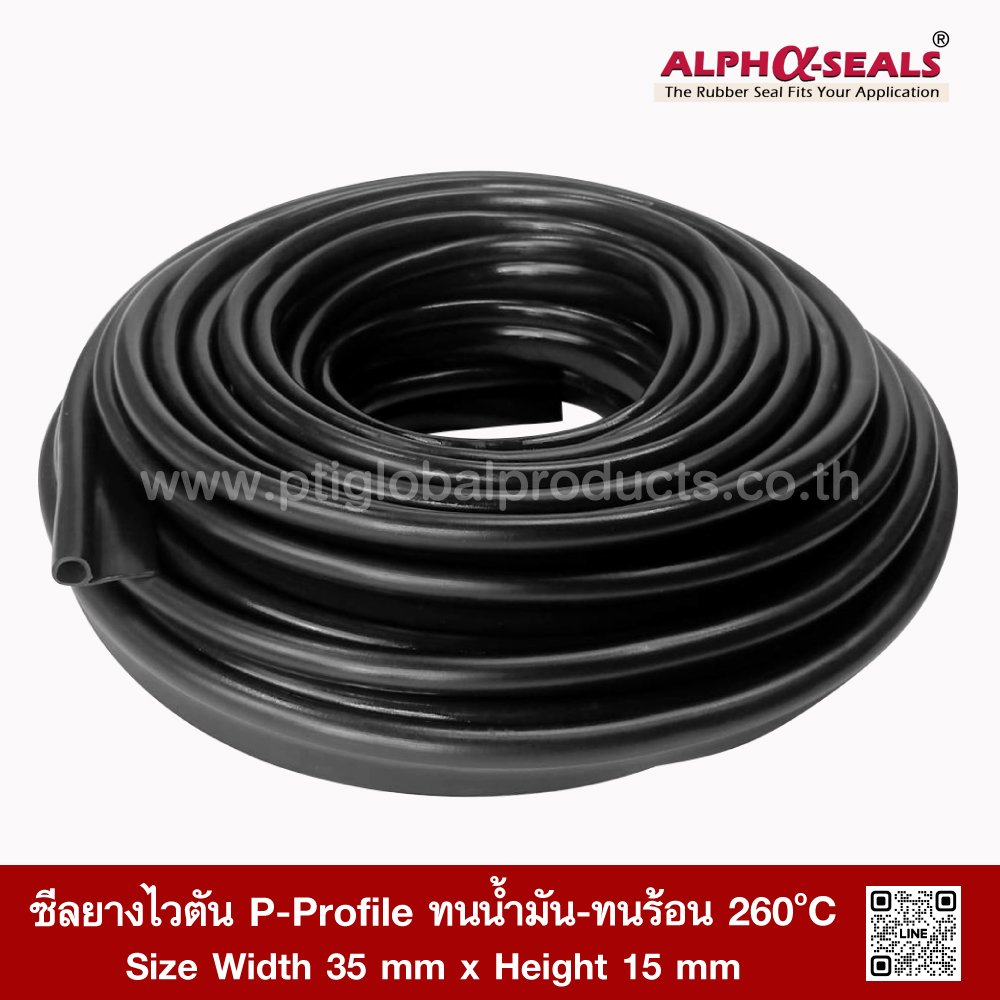

VITON FKM Rubber Seal P-Profile | Oil & Chemical Resistant to 260°C | AlphaSeals® | 35×15mm 50M/Roll | Black
Attribute:
VITON FKM rubber seal with P-Profile cross section. Oil, chemical & heat resistant to 260°C. Ideal for petrochemical, food, and heavy industry. Custom sizes available.
Categories : Rubber Seals P Profiles , Oven Door seals , ซีลตู้อบ P-Profiles , Rubber Seals-AlphaSeals , Rubber-Seals-P-Profiles ,
Brand : AlphaSeals
Share

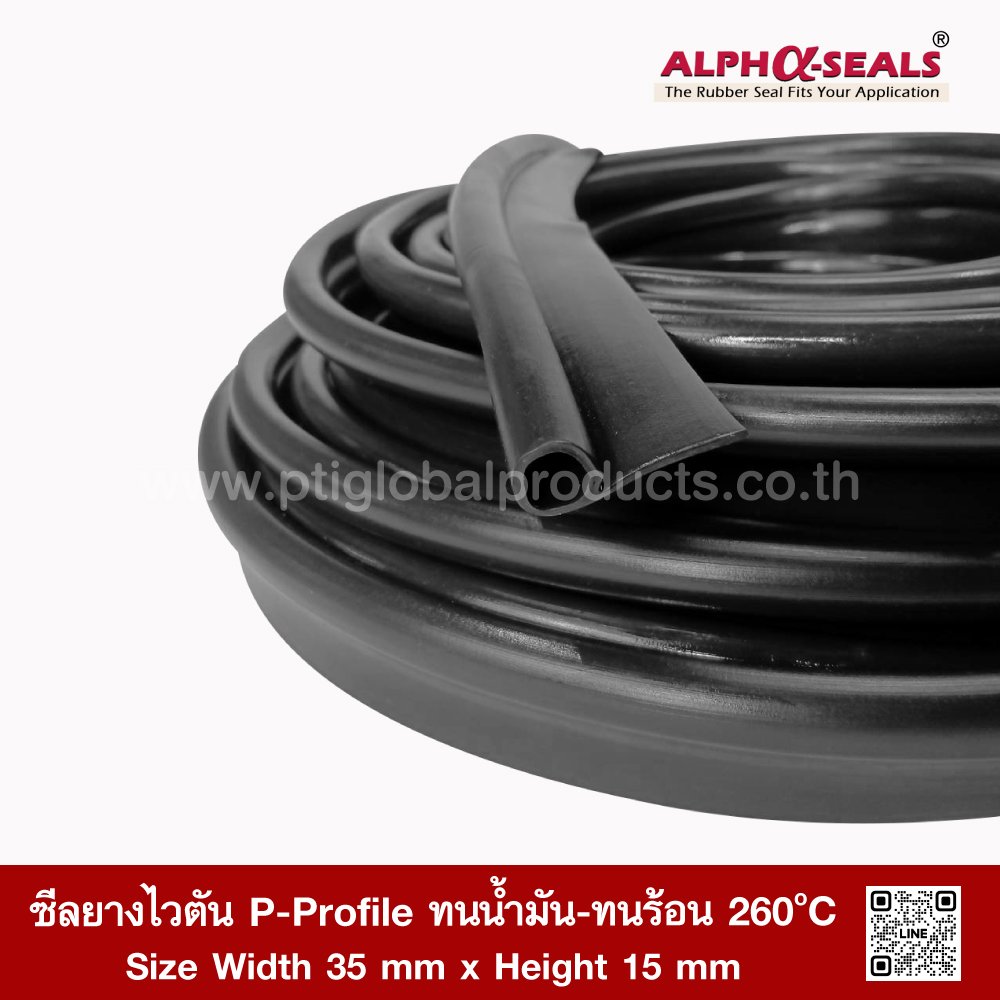

AlphaSeals® VITON P-Profile Rubber Seal in Black is the premium-grade sealing solution for industrial facilities operating in the most demanding environments — where resistance to oil, aggressive chemicals, and extreme heat is non-negotiable. Precision-extruded from high-grade VITON (FKM/FPM) rubber, this seal delivers outstanding chemical resistance combined with long-term durability that standard rubber materials simply cannot match.
The P-Profile cross section features a Hollow Bulb on top and a Flat Base below. Under compression, the hollow bulb collapses softly and recovers immediately — creating a tight, continuous seal even on uneven or imperfect mating surfaces. The flat base anchors the seal firmly in the groove, preventing any shift or dislodgement throughout the service life.

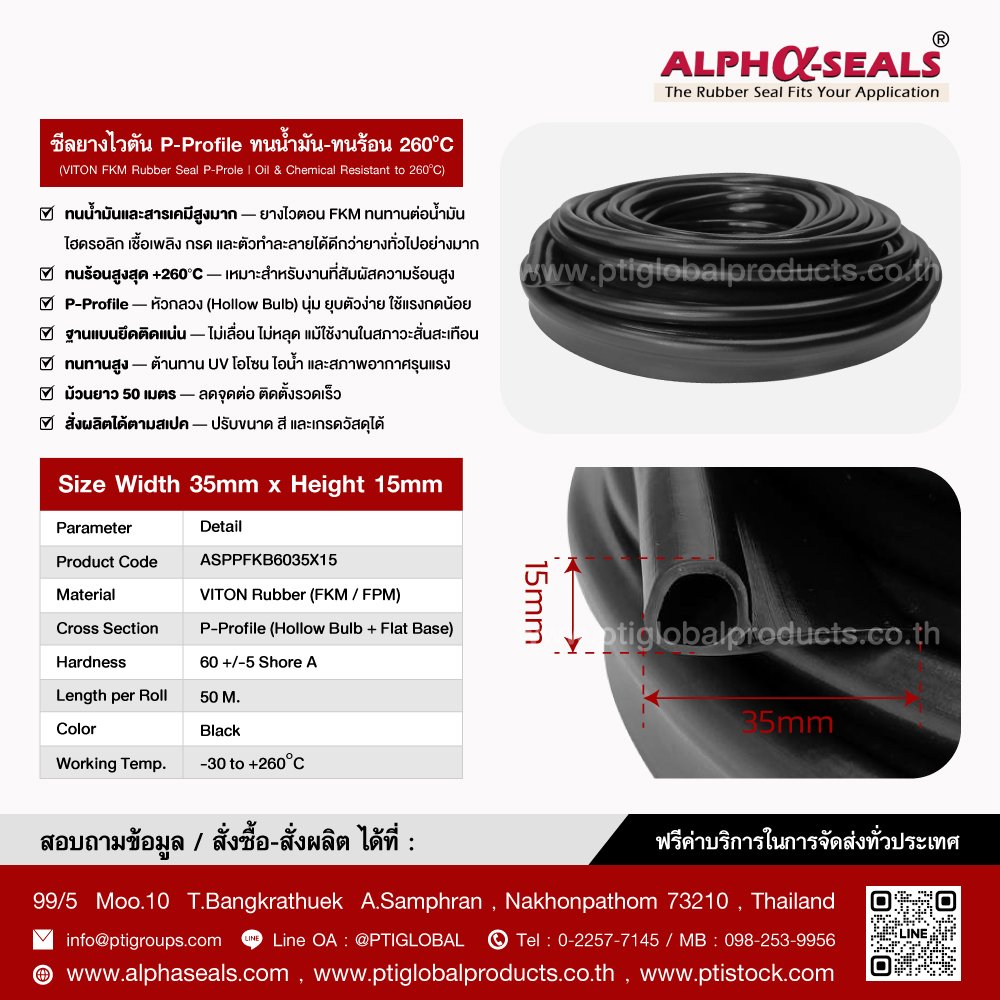

Specification
| Parameter | Detail |
| Product Code | ASPPFKB6035X15 |
| Material | VITON Rubber (FKM / FPM) |
| Cross Section | P-Profile (Hollow Bulb + Flat Base) |
| Hardness | 60 ± 5 Shore A |
| Size | Width 35 × Height 15 mm. |
| Wall Thickness | 2 mm |
| Length per Roll | 50 Metres |
| Color | Black |
| Working Temperature | -30°C ถึง +260°C |
| Certifications | FDA / RoHS |

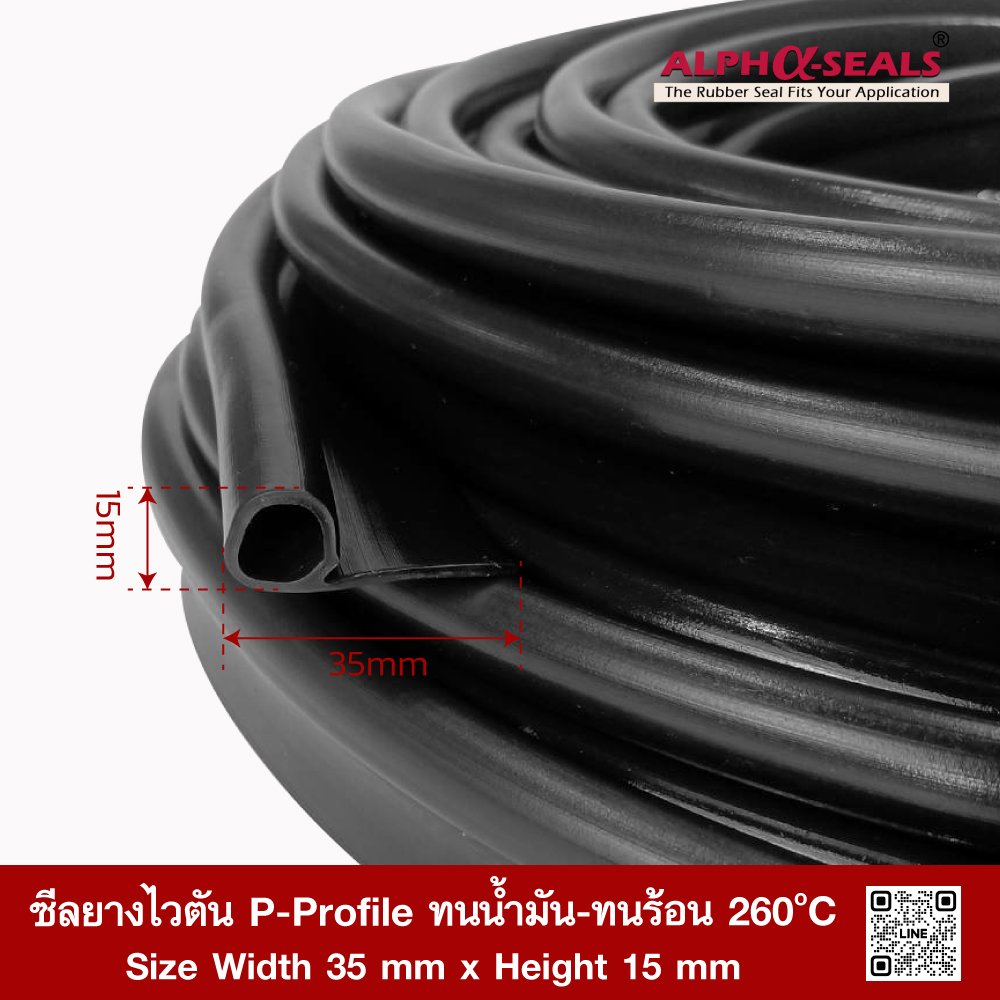

Cross Section — P-Profile
Why Hollow Bulb Seals Better — Simple Explanation
Think of pressing a hollow rubber ball versus pressing a solid rubber block:
The hollow ball compresses easily with little force — and still fills every gap perfectly. The solid block needs far more force — and may still leave gaps on uneven surfaces.
| Situation | Solid Seal | P-Profile Hollow Bulb |
| Compression force needed | High | Low |
| Uneven mating surface | May leak | Conforms and seals tight |
| Door or lid closing effort | Heavy | Closes easily |
| Service life | Wears faster | Longer — flex-friendly design |
Key Features
- Superior Oil & Chemical Resistance — VITON FKM withstands hydraulic oils, fuels, acids, and solvents far beyond the capability of standard rubber

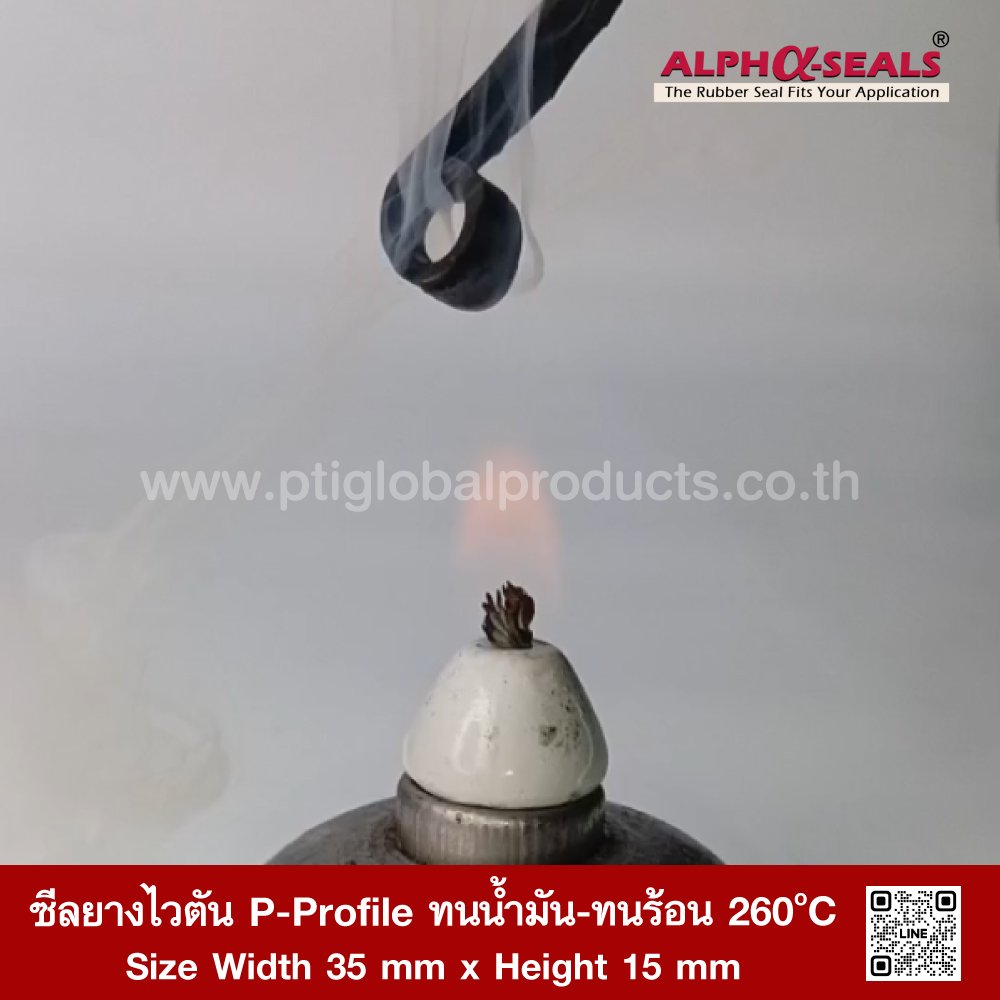

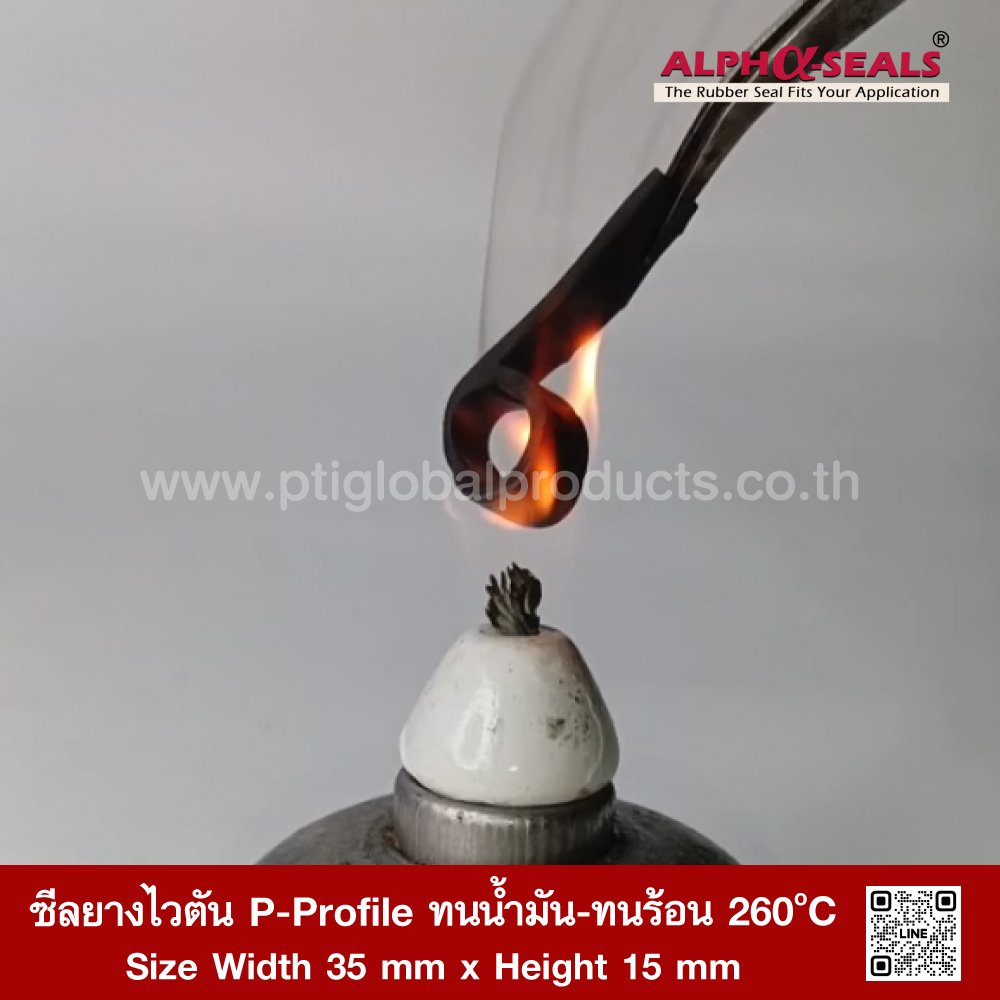

- Heat Resistant to +260°C — Reliable performance in high-temperature processing environments
- P-Profile Hollow Bulb — Soft compression with low clamping force, seals tight even on imperfect surfaces
- Flat Base Stays in Place — No movement, no dislodgement, even under vibration or pressure cycling
- Outstanding Durability — Resists UV, ozone, steam, and harsh weather — long service life, low maintenance

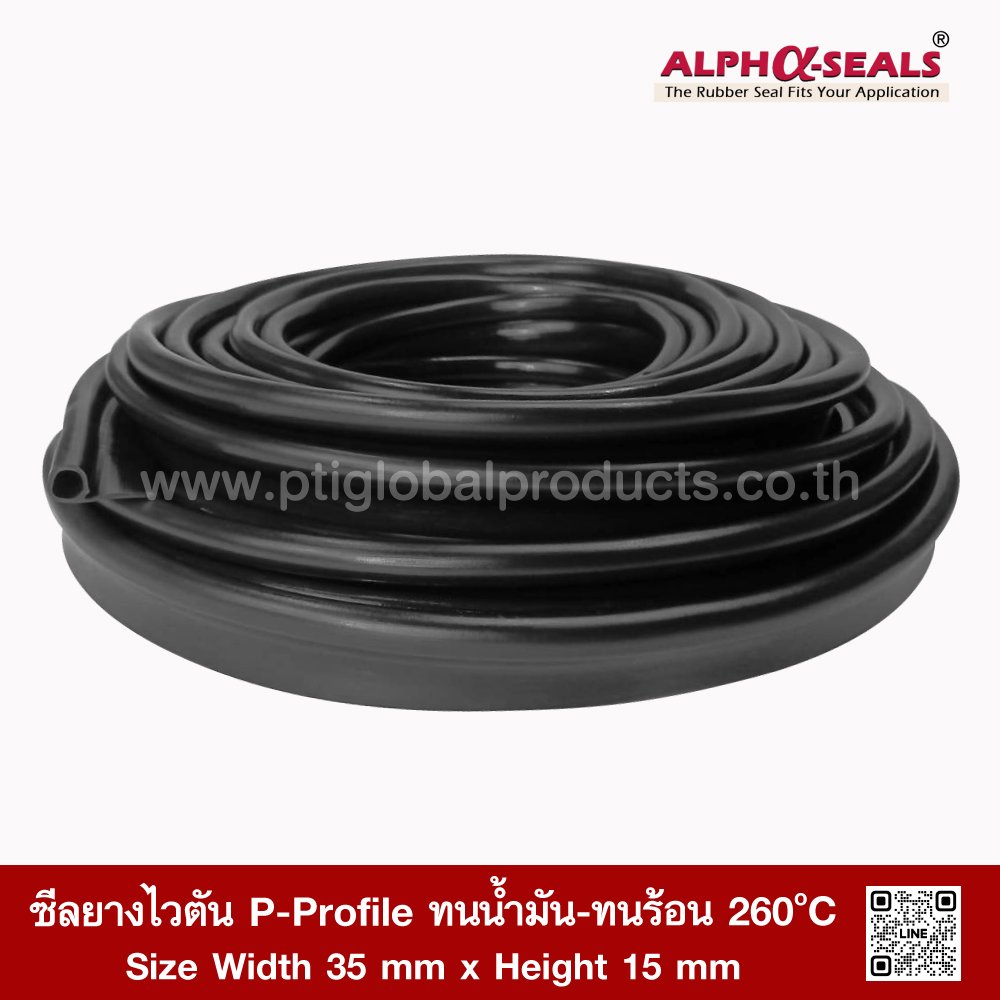

- 50-Metre Continuous Roll — Fewer joints, faster installation, less downtime on long sealing runs
- Custom Manufacturing Available — Any size, color, or material grade produced to your exact specification
Industry Applications
| Industry | Typical Use |
| Petrochemical & Oil | Pipe, valve, and system sealing in oil and fuel contact environments |
| High-Temperature Processing | Oven doors, drying tunnels, HDD cabinets, industrial heat equipment |
| Chemical & Pharmaceutical | Sealing systems exposed to acids, alkalis, and solvents |
| Automotive & Components | Engine cover seals, oil line sealing systems |
| Electrical & Electronics | Control cabinet and panel board sealing against dust and moisture |
| Marine & Outdoor | Weatherproof sealing in UV-exposed and saltwater environments |
Custom Manufacturing Service
- Custom profile based on drawing
- Material selection support
- Sample approval before mass production
- COA documentation
Contact for Quotation
LINE: @ptiglobal
Email: info@ptigroups.com
AlphaSeals® by PTI Global Products Company Limited
Rubber & Plastic Extrusion Specialist · OEM & Export Ready
